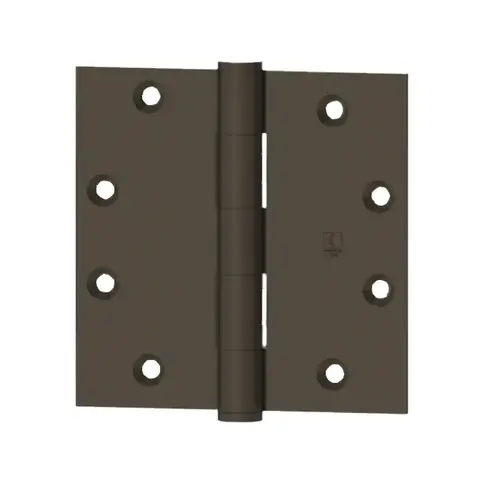

Hager 1279-4X4-10B-BALL-TIP Full Mortise Commercial Hinge - Ball Tip Oil Rubbed Dark Bronze
Item #: 1279-4X4-10B-BALL-TIP by Hager
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Oil Rubbed Dark Bronze
Finish Description
Oil Rubbed Dark Bronze
Hinge Size
4 x 4 Inch
Product Type
Hinge/Pivot
Series
1279 Series
Pin Type
Non-Rising Removable
Warranty
Lifetime limited
Color Code
613/US10B
Function
Plain Bearing Hinge
Mount
Full Mortise
Hinge Type
Full Mortise
Number of Knuckles
5
Product Material
Steel
Recommended For
Medium Frequency Doors or Doors Requiring Low Frequency Service
Number of Mounting Holes
8 Foot (96 Inches)
Standards
ANSI A8133
Fastener Size
1/2" x 12-24 Machine; 1-1/4" x 12 Wood
Hinge Weight
Standard
Hinge Corner
Square Corner
Function Family
Hinge/Pivot
Knuckle diameter
17/32"
Features
Non-Rising Removable Pin With Button Tip and Plug
Bearing Type
Plain
ADA Compliant
No
Finish Family
Dark Bronze
Included Components
Fasteners/Screws
Manufacturer Parent
Hager Companies
Distance From Leaf Edge To Swag Line
1-7/8"
Box Dimensions (L x W x H)
6x7.5x11.75
Sub-Series
HP_Commercial_Hinges_hager_12
Product Overview
1279 Full MortiseCommercial Hinges
Five Knuckle, Plain Bearing, Standard Weight
Application:- ANSI A8133
- Non-rising removable pin with button tip and plug
- With door closer use ball bearing hinge
- For use with medium frequency doors or doors requiring low frequency service
- Steel with Steel pin
- LS, H2H, USP, US3, US4, US10, US10A, US10B, US15, US26, US26D
- NRP - Non-removable pin
- Hinge Size (Inches) - 2 x 2
- Hinge Size (mm) - 51 x 51
- Gauge of Metal - 0.083
- Hole Count - 4
- Screw Size (Wood) - 3/4 x 8
- Hinge Size (Inches) - 2 1/2 x 2 1/2
- Hinge Size (mm) - 64 x 64
- Gauge of Metal - 0.089
- Hole Count - 6
- Screw Size (Wood) - 3/4 x 8
- Hinge Size (Inches) - 3 x 3
- Hinge Size (mm) - 76 x 76
- Gauge of Metal - 0.097
- Hole Count - 6
- Screw Size (Wood) - 1 x 9
- Hinge Size (Inches) - 3 1/2 x 3 1/2
- Hinge Size (mm) - 89 x 89
- Gauge of Metal - 0.119
- Hole Count - 6
- Screw Size (Machine) - 1/2 x 10-24
- Screw Size (Wood) - 1 x 9
- Hinge Size (Inches) - 4 x 4
- Hinge Size (mm) - 102 x 102
- Gauge of Metal - 0.129
- Hole Count - 8
- Screw Size (Machine) - 1/2 x 12-24
- Screw Size (Wood) - 1 1/4 x 12
- Hinge Size (Inches) - 4 1/2 x 4
- Hinge Size (mm) - 114 x 102
- Gauge of Metal - 0.134
- Hole Count - 8
- Screw Size (Machine) - 1/2 x 12-24
- Screw Size (Wood) - 1 1/4 x 12
- Hinge Size (Inches) - 4 1/2 x 4 1/2
- Hinge Size (mm) - 114 x 114
- Gauge of Metal - 0.134
- Hole Count - 8
- Screw Size (Machine) - 1/2 x 12-24
- Screw Size (Wood) - 1 1/4 x 12
- Hinge Size (Inches) - 5 x 4
- Hinge Size (mm) - 127 x 102
- Gauge of Metal - 0.145
- Hole Count - 8
- Screw Size (Machine) - 1/2 x 12-24
- Screw Size (Wood) - 1 1/4 x 12
- Hinge Size (Inches) - 5 x 4 1/2
- Hinge Size (mm) - 127 x 114
- Gauge of Metal - 0.145
- Hole Count - 8
- Screw Size (Machine) - 1/2 x 12-24
- Screw Size (Wood) - 1 1/4 x 12
- Hinge Size (Inches) - 5 x 5
- Hinge Size (mm) - 127 x 127
- Gauge of Metal - 0.145
- Hole Count - 8
- Screw Size (Machine) - 1/2 x 12-24
- Screw Size (Wood) - 1 1/4 x 12
- Hinge Size (Inches) - 6 x 4 1/2
- Hinge Size (mm) - 152 x 114
- Gauge of Metal - 0.160
- Hole Count - 10
- Screw Size (Machine) - 1/2 x 1/4-20
- Screw Size (Wood) - 1 1/2 x 14
- Hinge Size (Inches) - 6 x 5
- Hinge Size (mm) - 152 x 127
- Gauge of Metal - 0.160
- Hole Count - 10
- Screw Size (Machine) - 1/2 x 1/4-20
- Screw Size (Wood) - 1 1/2 x 14
- Hinge Size (Inches) - 6 x 6
- Hinge Size (mm) - 152 x 152
- Gauge of Metal - 0.160
- Hole Count - 10
- Screw Size (Machine) - 1/2 x 1/4-20
- Screw Size (Wood) - 1 1/2 x 14
