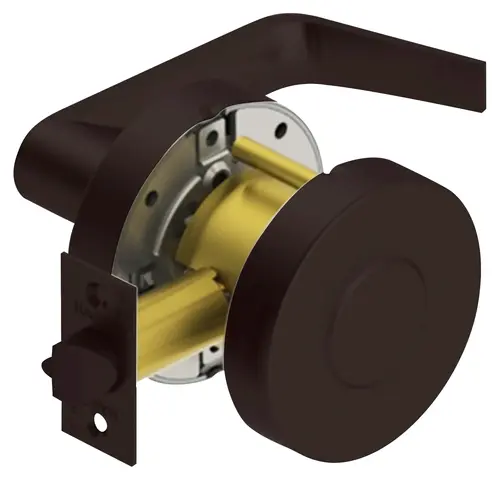

Hager 129012 2525 2-3/4" US10B ARC ASA - Exit (F111) Oil Rubbed Bronze

Item #: 129012 by Hager

UPC #: 798550290124

See reviewsSee reviews

$62.57

/each
SAVE UP TO 6.26

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Warranty

5-Year

Door Thickness

1-3/8" - 2" (35 mm - 51 mm)

Rose Diameter

3-11/32" (85 mm)

Strikes

1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike

Notes

Blank plate projection is 13/16" (21 mm) for function 25

Backsets

  • 2-3/4" (70 mm) standard
  • 2-3/8" (60 mm) optional

LEVER / CYLINDER PINNING

ARCHER LEVER

FINISHES - LOCKS

US10B - ANTIQUE BRONZE - OILED

Exposed Trim

  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols

Lever Options

Archer and Withnell

BACKSET in. - LOCKS

2-3/4

LATCH OPTIONS / CAMS / TAILPIECES

STANDARD

Lock Chassis

Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty

STRIKES - LOCKS

ASA STRIKE - STANDARD 1-5/16in. LIP

Standard Door Prep

  • Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)

Product Overview
2525 2-3/4" US10B ARC ASA
SPECS :

Applications:

  • Standard Duty Commercial

Backsets:

  • 2-3/4" (70 mm) standard
  • 2-3/8" (60 mm) optional

Certifications:

  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • Meets BHMA A156.2 Grade 2 test standards

Exposed Trim:

  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols

Features:

  • No exposed mounting screws
  • Non-handed

Functions: Exit (F111)

Latchbolt Type:

  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60mm) backset
  • Deadlocking latchbolt prevents manipulation when door is closed

Lever Options: Archer and Withnell

Notes: Blank plate projection is 13/16" (21 mm) for function 25

Options: Additional latchbolts and strikes available.

Standard Door Prep:

  • Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)

Strike Strikes: 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
