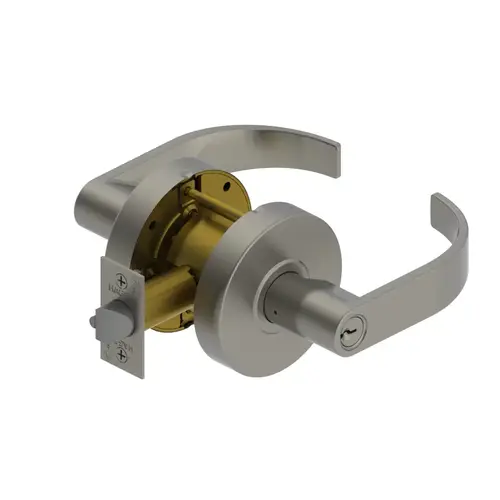

Hager 192187Click To Copy 2570 2-3/4" 26D.WTN.SCC.CMK.ASA.TW.6PKEY.LLK - Classroom (F84) Satin Chrome

Applications:

• Standard Duty Commercial

Backsets:

• 2-3/4" (70 mm) standard
• 2-3/8" (60 mm) optional

Certifications:

• ADA Compliant ANSI A117.1 Accessibility Code
• UL/cUL Listed for all functions up to 3 hours "A" label single doors
• UL10C Positive Pressure Rated
• Meets BHMA A156.2 Grade 2 test standards

Cylinders Cores:

• Keyed Different - standard
• Cylinder drilled 6 pin, Keyed 5 pin - standard
• Other Keying options, including 6 pin keyed, available from factory
• Zero bit cylinders will be 6 pin keyed
• SFIC uncombinated or combinated, brass 6 pin or 7 pin cores sold separately

Exposed Trim:

• Wrought brass, bronze, and stainless steel
• Lever is zinc based, plated to match BHMA symbols

Features:

• No exposed mounting screws
• Non-handed

Functions: Classroom (F84)

Keyway: Schlage C - Standard, other keyways optional

Latchbolt Type:

• 1/2" (13 mm) throw, stainless steel
• 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
• 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" backset
• Deadlocking latchbolt prevents manipulation when door is closed

Lever Options: Archer and Withnell

Notes: Standard cylinder or Small Format Interchangeable Core housing available

Options:

• Interchangeable Cores are sold separately
• Additional latchbolts and strikes available.

Standard Door Prep:

• Standard door prep - 2-1/8" (54 mm) diameter (cross bore)
• Latch hole - 1" (25 mm) diameter (edge bore)

Strike Strikes: 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
