In Stock $281.78 /each
SAVE UP TO 28.18
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How
Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Warranty
1 Year
Size

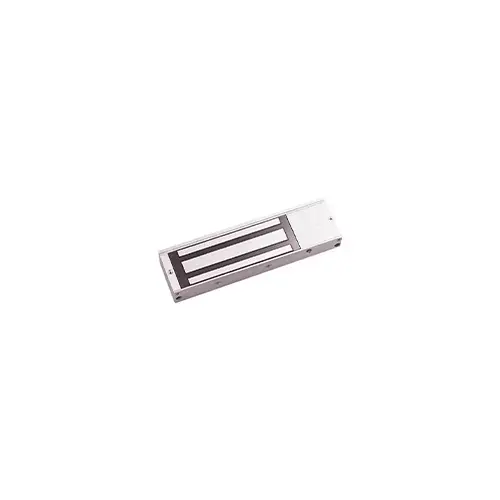

- Lock: 10-1/2" (l) x 2-7/8" (h) x 1-5/8" (d)
- Armature: 7-5/16" (l) x 2-3/8" (h) x 1/2" (d)
Holding Force
1200 lbs
LED Indicators
- Red - Energized & Unsecured
- Green - Energized & Secure
FINISHES - ELECTRIFIED
ALM - PAINTED SATIN ALUMINUM
Circuitry/Wiring
PC board with voltage and current spike protection, instant release anti-residual magnetism circuit, terminal block for power input and status outputs
Applications:
- For perimeter and interior door security and access control
- For system integrators, distributors, installers, and building owners presently using low cost import or private label brand access control hardware
Electrical Specifications:
- 500mA @ 12VDC | 250mA @ 24VDC - Power Input (Field Selectable)
- SPDT, dry 500mA @ 30VDC - Door Status Sensor
- SPDT, dry 2A @ 30VDC - Lock Status Sensor
Certifications:
ANSI/BHMA A156.23 Grade 1 Compliant
Features:
- Door Status Sensor
- Lock Status Sensor
- Wire access chamber with terminal block
- PC board with voltage and current spike protection, instant release anti-residual magnetism circuit
Finishes:
ALM
Warranty:
1 Year
