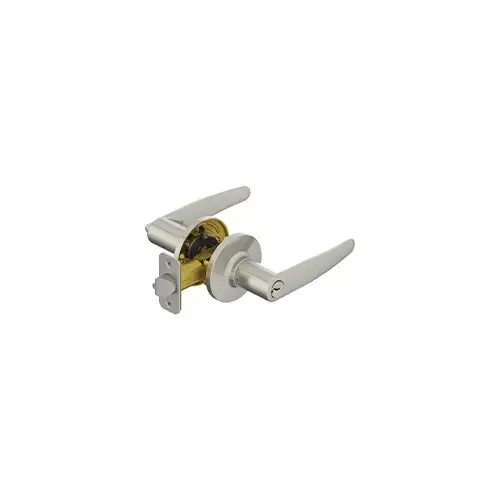

Hager 144765 3353 ADJ 2-3/8 TO 2-3/4 US15 WTN SCC KD FLRC Satin Nickel
Item #: 144765 by Hager
UPC #: 798550447658
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Warranty
One-Year
Door Thickness
1-3/8" - 1-3/4" (35 mm - 45 mm)
Rose Diameter
2-9/16" (65mm)
Strikes
- Round corner full-lip strikes - standard
- Square coner full lip and Tee Strike available separately
Notes
- Box Packed
- Turn button locking on interior side
Latchbolt Type
- 1/2" (13 mm) throw, zinc1" x 2-1/4" (25 mm x 57 mm) faceplate
- Deadlocking latchbolt prevents manipulation when door is closed
- 4-Way Latch (Square corner and Round corner faceplate provided)
Backsets
Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)
Cylinders/Cores
- Keyed Different - standard
- Cylinder drilled 5 pin - Only
- Other Keying options done by others
LEVER / CYLINDER PINNING
US15 - SATIN NICKEL
Exposed Trim
- Wrought Brass Rose
- Cast Zinc Levers
Lever Options
Archer, August, Johnston and Withnell
STRIKES - LOCKS
FULL LIP STRIKE - ROUND CORNER
Standard Door Prep
- Cylinder hole: 2-1/8" (54 mm) diameter (cross bore)
- Latch hole: 1" (25 mm) diameter (edge bore
Keyway
Schlage C - Only
FINISHES - LOCKS
US15 - SATIN NICKEL
Product Overview
Functions:
Entry
Applications:
- Multi-Family
- Residential
Notes:
- Box Packed
- Turn button locking on interior side
Certifications:
Meets BHMA A156.2 Grade 3 test standards
Finishes:
- US3, US10B, US15, US26, US26D and BLK
- Finishes other than US26D will be subject to extended lead times
Warranty:
One-year
