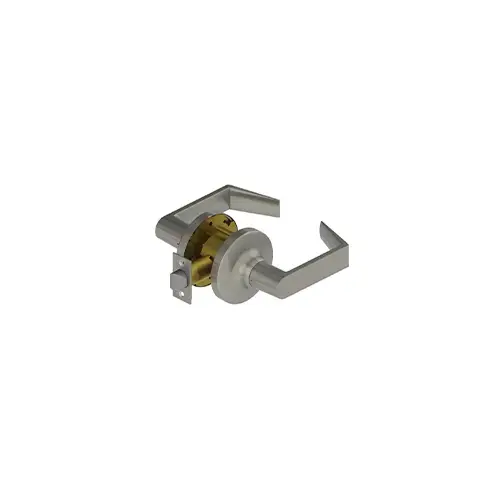

Hager 012525 Withnell Lever Passage Cylindrical Lock Satin Chrome Finish

Item #: 012525 by Hager

UPC #: 041359125259

See reviewsSee reviews
See reviews summary
In Stock

$187.51

/each
SAVE UP TO 18.75
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 551 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Projection

2.9688

Finish

Satin Chrome

Grade

ANSI/BHMA Grade 1

Lever Length

4.5313

Backset

2-3/4 Inch

Function

10-Passage

Door Thickness

1-3/8" - 2" (35 mm - 51 mm)

Strike

ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner

Bore Size

2.1250

Finish Description

Satin Chrome

Strike Number

3935

Lever Style

WTN-Withnell

Rose/Escutcheon Trim

Round Rose

Product Material

Zinc

Product Type

Cylindrical Lock

Series

3400 Series

Warranty

Lifetime Warranty on Mechanical Locking Components; 1 Year Warranty on Electric Components

Rose Diameter

3-17/32" (90 mm)

Design

Withnell

Application

Heavy Duty Commercial; Industrial; Institution

Color Code

626/US26D

Handle Type

Lever

Latch Throw

1/2 Inch

ANSI Function

F75

Latch Type

Deadlocking

Strike Type

ASA Strike

ADA Compliant

YES

Finish Family

Satin Chrome

Included Components

(2) Operating Keys

Standards

ANSI/BHMA A156.2; ADA Compliant ANSI A117.1 Accessibility Code; ANSI A250.13 Severe Windstorm Resistant Component; UL/cUL Listed; UL10C Positive Pressure Rated; UL10B Neutral Pressure Rated

Function Description

Latch retracted by knobs/levers at all times

Front Size

1-1/8" x 2-1/4"

Function Family

Passage/Hall/Closet

Strike Lip

1-5/16 Inch

Product Projection

2-31/32 Inch

Trim Material

Cast Zinc (Lever)

Features

No Exposed Mounting Screws; Free Wheeling Levers

Manufacturer Parent

Hager Companies

Lever Length-Inches

4.5313 Inch

Latch Corner

Square

Knob/Lever Size

4-27/32 Inch

Latch Bolt Material

Stainless Steel

Box Dimensions (L x W x H)

3.75x7.25x8.25

Lever Style Family

Straight Return Lever

Sub-Series

CL_Cylindrical_Locks_Hager_128

Strike Size

1-1/4" x 4-7/8"

Door Cross Bore

2.125 Inch

Strikes

  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available

Latchbolt Type

  • 1/2" (13 mm) throw, stainless steel
  • 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate
  • Square corner faceplates standard, round corner available

Backsets

  • 2-3/4" (70mm) - Standard
  • 2-3/8" (60mm) - Optional
  • 3-3/4" (94mm) - Optional
  • 5" (128mm) - Optional

LEVER / CYLINDER PINNING

WITHNELL LEVER

FINISHES - LOCKS

US26D - SATIN CHROMIUM

Exposed Trim

  • Wrought brass, bronze, and stainless steel
  • Lever is zinc based, plated to match BHMA symbols

Lever Options

Archer, August and Withnell

BACKSET in. - LOCKS

2-3/4

LATCH OPTIONS / CAMS / TAILPIECES

STANDARD

Lock Chassis

  • Heavy gauge steel, zinc dichromated for corrosion resistance.
  • Thru-post mounted.

STRIKES - LOCKS

ASA STRIKE - STANDARD 1-5/16in. LIP

Standard Door Prep

  • 2-1/8" (54 mm) diameter with thru-bolt holes (cross bore)
  • Latch hole - 1" (25 mm) diameter (edge bore)

HANDING / MISC. - LOCKS

NOT APPLICABLE

Dimension

3-11/32" Rose; 4-17/32" Lever Length; 2-21/32" Projection

Material

Zinc Lever, Wrought Brass Rose, and Steel Chassis

Manufacturer Warranty

Limited Lifetime Warranty and 1 Year Finish Warranty

Rose/Escutcheon Design

Round Rose

UL Listing Type

UL/cUL Listed for all functions up to 3 Hours

Door Range

1-3/8" to 2"

Hazardous Material

No

Strike Dimension

1-1/4" x 4-7/8"

Cross Bore Size

2-1/8" Bore

Finish code

US26D

Latch Faceplate Dimension

1-1/8" x 2-1/4"

Lever Knob Design

Withnell Lever

No of inners

1

Product Overview

Functions:
Passage (F75)
Applications:
  • Extra Heavy Duty Commercial
  • Industrial
  • Institution

Certifications:
  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 1
  • ANSI A250.13 Severe Windstorm Compliant
  • Miami Dade County, FL NOA #22-0816.08

Features:
  • No exposed mounting screws
  • Non-handed

Finishes:
  • US3, US4, US10B, US26, US26D and BLK
  • Anti-Microbial Coating (US26D finish only)

Options:
  • Lead Lining
  • Tactile Warning
  • Split Finish

Warranty:
Lifetime
