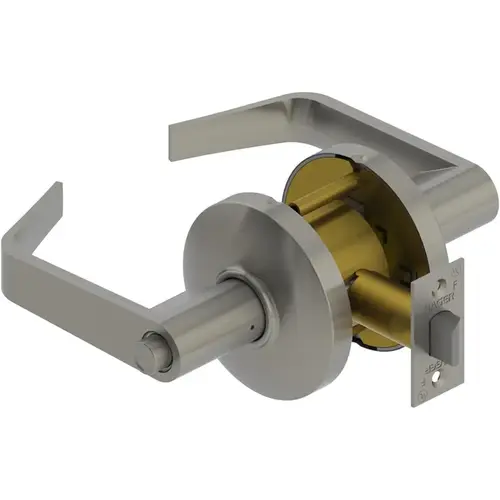

Hager 000247Click To Copy 3540 2-3/4" SC US26D WTN ASA Withnell Grade 2 Cylindrical Privacy - Satin Chrome
Item #: 000247 by Hager
UPC #: 041359002475
See reviewsSee reviews
In Stock
$120.11
/eachSAVE UP TO 12.01
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 511 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Projection
2.6563
Finish
Satin Chrome
Grade
ANSI/BHMA Grade 2
Lever Length
4.5313
Backset
2-3/4 Inch
Function
Privacy/Bed/Bath
Door Thickness
1-3/8" - 2" (35 mm - 51 mm)
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Bore Size
2.1250
Finish Description
Satin Chrome
Strike Number
3935
Lever Style
WTN-Withnell
Rose/Escutcheon Trim
Round Rose
Product Material
Zinc
Product Type
Cylindrical Lock
Series
3500 Series
Warranty
Lifetime
Rose Diameter
3-11/32" (85 mm)
Application
Standard Duty Commercial
Color Code
626/US26D
Handle Type
Lever
ANSI Function
F76
Latch Number
3965
Latch Type
Spring
Strike Type
ASA Strike
ADA Compliant
YES
Finish Family
Satin Chrome
Included Components
(2) Operating Keys
Standards
ANSI/BHMA A156.2; UL/cUL Listed; ANSI A250.13 Severe Windstorm Component; Miami-Dade County Florida NOA# 17-1226.23; UL10C; UL10B
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Front Size
1-1/8" x 2-1/4"
Function Family
Privacy/Bedroom/Bathroom
Latch bolt size
3/4 Inch
Strike Lip
1-5/16 Inch
Product Projection
2-21/32 Inch
Trim Material
Cast Zinc (Lever)
Features
No Exposed Mounting Screws; Removable Through Bolts; Free Wheeling; Zinc Dichromated Lock Chassis for Corrosion Resistance
Manufacturer Parent
Hager Companies
Lever Length-Inches
4.5313 Inch
Latch Corner
Square and Round
Knob/Lever Size
4-17/32 Inch
Latch Bolt Material
Stainless Steel
Box Dimensions (L x W x H)
3.75x7.25x8.25
Lever Style Family
Straight Return Lever
Sub-Series
CL_Cylindrical_Locks_Hager_102
Latch Throw
1/2 Inch
Strike Size
1-1/4" x 4-7/8"
Door Cross Bore
2.125 Inch
Strikes
- 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
- Optional strikes available
Notes
- No exposed mounting screws
- Non-handed
Latchbolt Type
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
Backsets
- 2-3/4" (70mm)
- 2-3/8" (60mm)
- 3-3/4" (94mm)
- 5" (128mm)
LEVER / CYLINDER PINNING
WITHNELL LEVER
FINISHES - LOCKS
US26D - SATIN CHROMIUM
Exposed Trim
Wrought brass, Bronze, and Stainless steel
Lever Options
Archer, August and Withnell
BACKSET in. - LOCKS
2-3/4
LATCH OPTIONS / CAMS / TAILPIECES
STANDARD
Lock Chassis
Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
STRIKES - LOCKS
ASA STRIKE - STANDARD 1-5/16in. LIP
HANDING / MISC. - LOCKS
NOT APPLICABLE
Collection
Withnell
Package Height
4"
Package Length
8.5"
Package Width
7.5"
Item Weight
4.1 lbs
Product Overview
3540 2-3/4 SC US26D WTN ASA Withnell Cyl Privacy Satin Chrome
