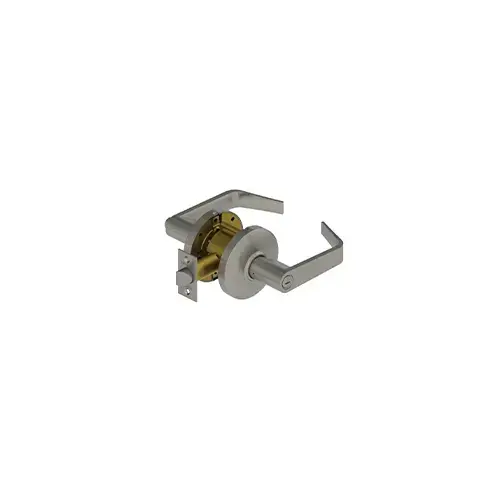

Hager 091146 3540 2-3/4" US32D APL ASA Satin Stainless Steel
Item #: 091146 by Hager
UPC #: 041359911463
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Stainless Steel
Grade
ANSI/BHMA Grade 2
Backset
2-3/4 Inch
Function
40-Privacy
Door Thickness
1-3/8" - 2" (35 mm - 51 mm)
Strike
ANSI, 1-1/4 Inch x 4-7/8 Inch, 1-1/4 Inch Lip, Square Corner
Finish Description
Satin Stainless Steel
Knob style
APL-Apollo
Rose/Escutcheon Trim
Round Rose
Product Material
Zinc
Product Type
Cylindrical Lock
Series
3500 Series
Warranty
Lifetime
Rose Diameter
3-11/32" (85 mm)
Application
Standard Duty Commercial
Color Code
630/US32D
Handle Type
Knob
ANSI Function
F76
Latch Number
3965
Latch Type
Spring
Strike Number
3935
Strike Type
ASA Strike
ADA Compliant
No
Finish Family
Stainless Steel
Included Components
(2) Operating Keys
Standards
ANSI/BHMA A156.2; UL/cUL Listed; ANSI A250.13 Severe Windstorm Component; Miami-Dade County Florida NOA# 17-1226.23; UL10C; UL10B
Function Description
Outside knob/lever locked by pushbutton on inside knob/lever. Rotating inside knob/lever or closing door releases/unlocks button. Emergency release in outside knob/lever.
Front Size
1-1/8" x 2-1/4"
Function Family
Privacy/Bedroom/Bathroom
Latch bolt size
3/4 Inch
Strike Lip
1-5/16 Inch
Product Projection
2-1/2 Inch
Features
No Exposed Mounting Screws; Removable Through Bolts; Zinc Dichromated Lock Chassis for Corrosion Resistance
Latch Throw
1/2 Inch
Strike Size
1-1/4" x 4-7/8"
Manufacturer Parent
Hager Companies
Latch Corner
Square and Round
Knob/Lever Size
2-1/4 Inch
Latch Bolt Material
Stainless Steel
Box Dimensions (L x W x H)
3.75x7.25x8.25
Knob Style Family
Ball Knob
Sub-Series
3540-32D-APL
Strikes
- 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
- Optional strikes available
Notes
- No exposed mounting screws
- Non-handed
Latchbolt Type
- 1/2" (13 mm) throw, stainless steel
- 1-1/8" x 2-1/4" (29 mm x 57 mm) faceplate for 2-3/4" (70 mm) backset
- 1" x 2-1/4" (25 mm x 57 mm) faceplate for 2-3/8" (60 mm) backset
Backsets
- 2-3/4" (70mm)
- 2-3/8" (60mm)
- 3-3/4" (94mm)
- 5" (128mm)
LEVER / CYLINDER PINNING
APOLLO KNOB
FINISHES - LOCKS
US32D - SATIN STAINLESS STEEL
Exposed Trim
Wrought brass, Bronze, and Stainless steel
Lever Options
Archer, August and Withnell
BACKSET in. - LOCKS
2-3/4
LATCH OPTIONS / CAMS / TAILPIECES
STANDARD
Lock Chassis
Heavy gauge steel, zinc dichromated for corrosion resistance. Thru-posts are removable. Failure to install thru-posts and screws voids BHMA certification, UL rating, and warranty
STRIKES - LOCKS
ASA STRIKE - STANDARD 1-5/16in. LIP
HANDING / MISC. - LOCKS
NOT APPLICABLE
Product Overview
Functions:
Privacy (F76A)
Applications:
Standard Duty Commercial
Notes:
- No exposed mounting screws
- Non-handed
Certifications:
- ADA Compliant ANSI A117.1 Accessibility Code
- UL/cUL Listed for all functions up to 3 hours "A" label single doors
- UL10C Positive Pressure Rated
- BHMA Certified ANSI A156.2, Series 4000, Grade 2
Finishes:
- US3, US4, US10B, US26, US26D and BLK
- Anti-Microbial coating (US26D finish only)
Options:
- Lead Lining
- Tactile Warning
- Split Finish
Warranty:
Lifetime
