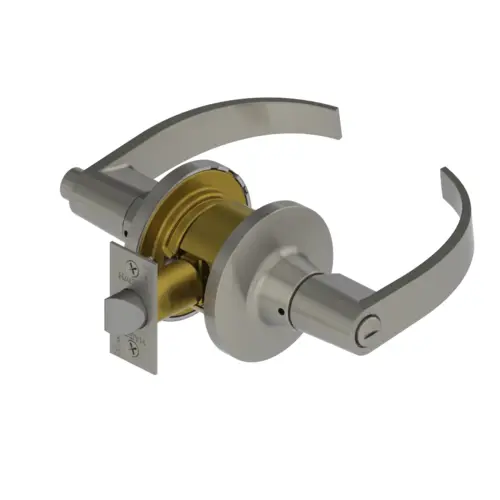

Hager 092433 3640 ADJ 2-3/8 TO 2-3/4 US3 WTN ASA - Privacy (F76B) Bright Brass

Item #: 092433 by Hager

UPC #: 041359924333

See reviewsSee reviews
See reviews summary

$84.80

/each
SAVE UP TO 8.48
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Warranty

Five-Year

Door Thickness

1-3/8" - 1-3/4" (35 mm - 45 mm)

Rose Diameter

2-15/16" (75 mm)

Strikes

  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available

Notes

  • No exposed mounting screws
  • Non-handed

Latchbolt Type

  • 1/2" (13 mm) throw, stainless steel
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate
  • Square corner faceplate standard, round corner optional

Backsets

Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)

LEVER / CYLINDER PINNING

WITHNELL LEVER

FINISHES - LOCKS

US3 - BRIGHT BRASS

Exposed Trim

  • Rose - Wrought brass, bronze, and stainless steel
  • Lever - Zinc based, plated to match BHMA symbols

Lever Options

Archer, August and Withnell

LATCH OPTIONS / CAMS / TAILPIECES

STANDARD

STRIKES - LOCKS

ASA STRIKE - STANDARD 1-5/16in. LIP

Product Overview
3640 ADJ 2-3/8 TO 2-3/4 US3 WTN ASA
SPECS :

Applications:

  • Medium Duty Commercial
  • Heavy Duty Residential

Backsets: Adjustable 2-3/8" - 2-3/4" (60mm - 70mm)

Certifications:

  • ADA Compliant ANSI A117.1 Accessibility Code
  • UL/cUL Listed for all functions up to 3 hours "A" label single doors
  • UL10C Positive Pressure Rated
  • BHMA Certified ANSI A156.2, Series 4000, Grade 2

Exposed Trim:

  • Rose - Wrought brass, bronze, and stainless steel
  • Lever - Zinc based, plated to match BHMA symbols

Functions: Privacy (F76A)

Latchbolt Type:

  • 1/2" (13 mm) throw, stainless steel
  • 1" x 2-1/4" (25 mm x 57 mm) faceplate
  • Square corner faceplate standard, round corner optional

Lever Options: Archer, August and Withnell

Notes:

  • No exposed mounting screws
  • Non-handed

Options: Split Finish

Strike Strikes:

  • 1-1/4" x 4-7/8" (32 mm x 124 mm) ASA strike
  • Optional strikes available
