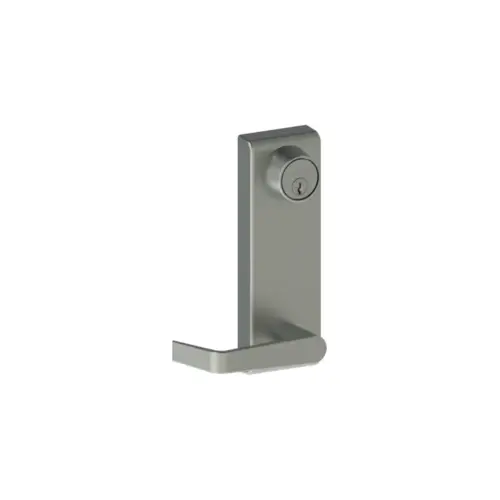

Hager 47CE-RHR-WTN-32D 4700 Series Exit Device Part Satin Stainless Steel

4700 SeriesStandard Duty RIM Device

The Hager 4700 Series is designed and engineered to provide superior performance on standard stile doors in a range of light commercial and standard duty applications. Properly applied and maintained Hager 4700 Series Exit Devices and Trim are backed by a five-year warranty. Go to www.hagerco.com for specific warranty conditions. Hager 4700 Series Exit Devices meet Life Safety codes and Fire Safety requirements. The 4700 Series Rim device meets the requirements for a Severe Windstorm Resistant Component.

Made with superior materials and with dead locking stainless steel Pullman type latchbolts, the 4700 Series Exit Devices provide necessary security and performance at economy pricing.

Warranty:

• Five-year warranty

Features: Certification:

• ANSI/BHMA A156.3-2014 Grade 1
• UL305 Listed for Panic Hardware
• UL10C Positive Pressure Rated
• UL10B Neutral Pressure Rated
• Complies with ANSI A117.1 for Accessible Buildings and Facilities
• ANSI A 250.13 Severe Windstorm Resistant Component

Covers:

• Cast brass, bronze, stainless steel, zinc

Cover Tube:

• Painted steel, plated steel, stainless steel

Dogging:

• Hex dogging feature standard on non-fire labeled doors

End Caps:

• Painted steel, plated steel, stainless steel

Fasteners:

• Wood and machine screws
• Thru-bolts supplied standard

Latchbolt:

• 3/4" (19 mm) throw, pullman type with automatic dead-latching, stainless steel

Strikes:

• Stainless steel with stainless steel pin and roller - included standard with panic and fire-rated devices
• Surface applied to frame with slotted holes for easy adjustment
• Optional double door strike for use with surface vertical rod and rim devices

Specifications: Door Thickness:

• 1-3/4" (44 mm) - Standard

Door Width:

• 36" (914 mm) field sizeable to 30" (762 mm) door
• 48" (1219 mm) field sizeable to 36" (914 mm) door

Projection:

• 2-7/16" (62 mm) in undogged position
• 1-3/16" (30 mm) in dogged position

Stile Width:

• 4-1/2" (114 mm) - minimum stile width required for single door and 5/8" (16 mm) stop
• 4-1/2" (114 mm) - minimum stile width required for double door x surface vertical rod device with double door strike
• 5" (127 mm) - minimum stile width required for double doors with 2" (5 1 mm) mullion
• All stile widths are measured from door edge

Notes:

• Cylinders sold separately
• Escutcheon and thumbpiece pull plate trim is handed
• Apollo knob is not ADA compliant
• Recommended for use on appropriately reinforced doors

Notes:

• 4700 Series escutcheon trim for rim device is available with a variety of lever options
• 4700 Series key-in-trim is available with a variety of lever options plus a knob option
• Pull plate trim
• Raised lip pull
• Rim cylinder x optional pull

Finishes:

• US3, US32D, ALM, DBZ
