Hager 743S-N-36-MILClick To Copy Automatic Door Bottom Aluminum Painted

Item #: 743S-N-36-MIL by Hager

See reviewsSee reviews

$130.27

/each
SAVE UP TO 13.03

Buying in bulk

Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Finish

Aluminum Painted

Finish Description

Aluminum Painted

Product Type

Door Accessory

Series

740 Series

Manufacturer Parent

Hager Companies

For Use With

Conjunction With a Threshold

Product Width

1-3/4 Inch

Function

Automatic Door Bottom

Sub-Series

743S-N-36-MIL

ADA Compliant

No

Product Height

1-13/16 Inch

Standards

BHMA Certified; Air Infiltration ASTM E283; cUL Listed; Fire Test Category J, H; Sound Tested ASTM E90 and ASTM E413

Features

Mortise Type; Provides An Outstanding Seal Against Drafts, Light, Smoke and Sound; Max Drop: 3/4"

Temperature Range

Flexible Down to -50°F

Product Length

36 Inch

Warranty

5 Year

Included Components

#6 x 5/8" Pan Head Sheet Metal Screws

Insert Type

Neoprene Insert

Finish Family

Aluminum

Product Overview
Automatic Door Bottom740S/743SFeatures:
  • Furnished exact length as stated
  • Available in lengths of 12" to 60"
  • Lengths 16"-29" may be trimmed for fitting (2" maximum)
  • Lengths 30" - 60" may be trimmed for fitting (5" maximum)
  • Furnished with mortise types and surface mount types
  • DBA/GLD end caps available on CLR finish
Specifications: Fasteners:
  • #8 x 1 1/4" Pan head sheet metal screws furnished with surface mount types #6 x 5/8" Pan head sheet metal screws furnished with mortise types and surface mount types
Fire Rating:
  • UL Listed
Length:
  • 49" to 60"
Size:

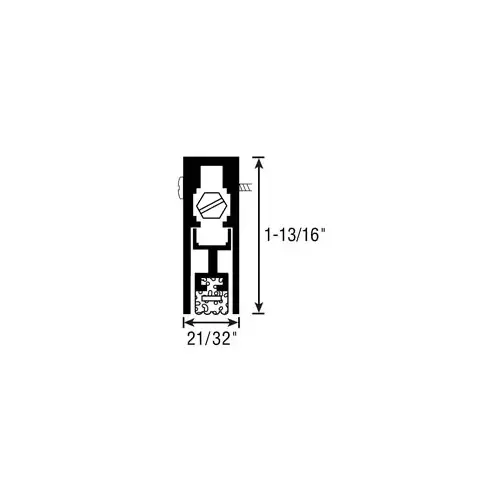

  • 740s - 21/32" x 1 13/13" (17 mm x 46 mm)
  • 743S - 1 3/4" x 1 13/16" (45 mm x 45 mm)
Warranty:
  • Five-Year Warranty
Finishes:
  • US28 - Satin Aluminum Clear
  • SP28 - Aluminum
