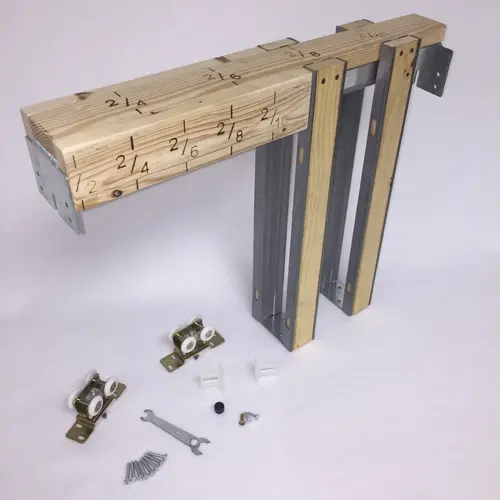

Hager 027878 9630CS, 84", 150 LB, COMMERCIAL POCKET DOOR KIT
Item #: 027878 by Hager
UPC #: 041359278788
In Stock $220.40 /each
Buying in bulk
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Door Thickness
For doors 1-3/8" - 1-3/4" (35mm - 44 mm) thick
SPECS :
Certifications:
- Meets performance requirements for ANSI/BHMA 156.14 (Grade 1) f
- Type: D02311-150
- ADA Compliant
Door Specifications: For doors 1-3/8" - 1-3/4" (35mm - 44 mm) thick, up to 3"0" (914 mm) wide and 7"0" (2184 mm), For door weighing up to 150 lbs (68 kg)
Installation: For Bi-Parting Doors use Hager Double Pocket Door Kit 9639 (sold separately),Joins 2 pocket door frames to make one large doorway. Rough opening width changes to 4 times one door width.
Maximum Door Weight: 150 lbs (68 kg)
Notes:
- For size options review the Size Options Chart
- For kit contents see Related Files
Options:
- Soft Close mechanism (1-269-8651) is available, sold separately. (Use of Soft Close mechanism exceeds ADA 5 lb. of opening force threshold)
- See Related Files for additional information.
Product Description: For 3"0" wide x 7"0" high doors up to 150 lbs (68 kg) per door.
Specifications:
- Pre-assembled header assembly goes up quickly
- Easy door installation and removal for painting and repair
- 2 pair of wood split studs with wood inserts • size 3/4" (19 mm) x 1-5/8" (26 mm) length relative to height • steel encased for rigidity and to prevent fastener penetration into the pocket
- Track header unit attaches to rough framing at both ends
- Split studs can be nailed or screwed to track header
