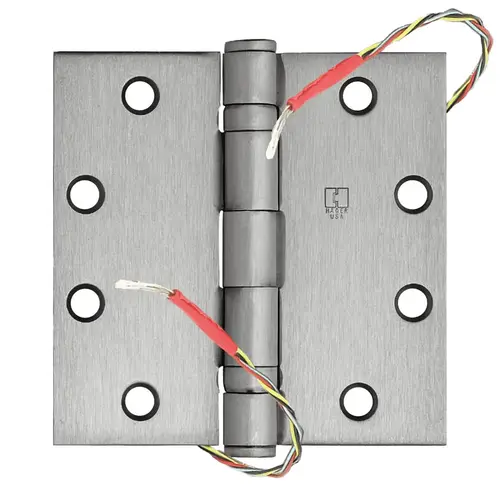

Hager BB1279 4.5 X 4.5 US26D ETW-4 ETW Concealed Electric Through-Wire, 4 Wire, 5-Knuckle Hinge, Standard Weight, Full Mortise, Ball Bearing, 4.5" x 4.5" (4545), Steel Base, 652/US26D Satin Chrome
Item #: BB1279 4.5 X 4.5 US26D ETW-4 by Hager
Brand: Hager
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
Alternate Part Number-1
249092
Wire
4 Wire
Finish
US26D - Satin Chrome
ANSI/BHMA Standards
ANSI A8112
Electronic
Yes
Knuckles
5
Bearing Type
Ball Bearing
Substrate Type
Steel
Features
Two ball bearings. Non-rising removable pin with button tip and plug.
Duty Level
Medium Duty
Size
4.5" x 4.5"
Product Overview
HAGER BB1279-ETW Electric Through-Wire Full Mortise Ball Bearing 5 Knuckle Hinge
Applications:For use on medium weight doors or doors requiring medium frequency service.
Certifications: ANSI A8112;
Finishes: USP, US3, US4, US10, US10A, US10B, US26D;
Electric Modifications:EMN (Electric Monitor Only), ETW (Electric Through-Wire Only), ETM (Electric Through-Wire with Monitoring), Quick Connect
Knuckles:5;
Features: Two ball bearings. Non-rising removable pin with button tip and plug;
Fire Rating:Complies with NFPA80 requirements for use on fire rated door assemblies;
Notes:
- Available with reversible hole pattern..
Material: Steel with Steel Pin;
Options:
- 3-1/2" x 3-1/2" (89 mm x 89 mm) available with reversible hole pattern.
- NRP (Non-removable pin).
- Stamped with UL logo when ordered for export.
HAGER COMMERCIAL HINGES
Today, the Hager name is synonymous with architectural hinges. In fact, they are the industry s premiere designer and manufacturer of architectural hinges, with a product line that offers one of the widest varieties of sizes, shapes, and finishes--all of which meet or exceed ANSI standards.- Hinges are manufactured in accordance with ANSI/BHMA A156.1. Self-closing hinges and pivots are in accordance with ANSI/BHMA A156.17 using three hinges per opening on a 3 0" x 7 0" x 1-3/4" (914 mm x 2134 mm x 44 mm) door.
- Round corners are available in 1/4" (6 mm) (standard) or 5/8" (16 mm) radius.
- Full Mortise Both leaves are mortised, one leaf in the door and one leaf in the frame (wood door or hollow metal door with wood frame or hollow metal frame). Example: BB1279, 4-1/2" x 4-1/2" (114 mm x 114 mm), US26D;
- Half Mortise One leaf is mortised in the door and the other is surface applied to the frame (hollow metal door with channel iron frame). Example: BB1109, 4-1/2" (114 mm), US26D;
- Full Surface Both leaves are applied to the surface, one to the door and the other to the frame (metal core door or hollow metal door with channel iron frame). Example: BB2171, 5" (127 mm), USP;
- Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame) Example: BB1163, 5" (152 mm), US26D.
