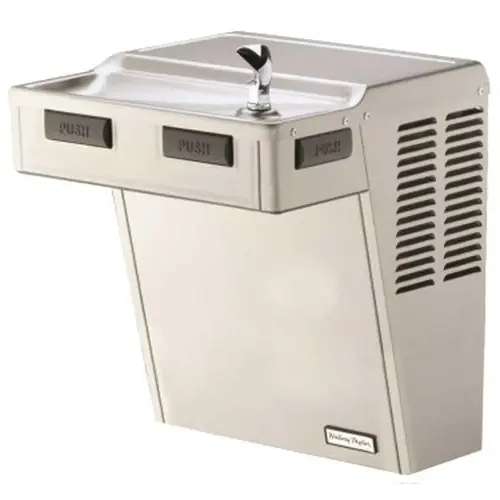

HALSEY TAYLOR 8240081641 HAC Series HAC8FS-Q ADA Wall Mounted Drinking Fountain in Platinum Vinyl
Item #: 8240081641 by HALSEY TAYLOR
UPC #: 094902262086
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Power Source
Hardwired
Flow rate (gallons per minute)
14
Inlet Size (in.)
0.25
Color
Stainless Look, Stainless Steel
Standard Color Family
Stainless Look
Product Width (in.)
18
Valve material
Metal
Commercial/Residential
Commercial
Certifications and Listings
ADA Compliant
Capacity (Gallons)
8
Antimicrobial
NO
Product Height (in.)
20.6875
Pack Size
1
Features
No Additional Features
Temperature Range
50ºF. Adjustable +/- 5ºF
Filter Included
No
Product Depth (in.)
18.625
Inlet Type
IPS
Warranty
Limited Warranty
Operation
Push button
Manufacturer Warranty
Limited Warranty
UNSPSC
48101710
Voltage
115 V
Capacity
8 gal/hr
Material
Stainless Steel
Package Quantity
1
UL Listed
No
Amperage
4.5 amp
Mounting Location
Wall Mount
ADA Compliant
YES
Indoor/Outdoor
Indoor
Inlet Size
0.38 in.
Operation Type
Push Bar
Housing Material
Other
MADE IN THE USA
Yes
Assembled Product Depth
18.63 in.
Assembled Product Height
18.62 in.
Assembled Product Width
19.56 in.
Drinking Fountain Type
Single Fountain
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Ligature Resistant
False
CA AB100 Compliant
True
Assembled Product Weight
60 lb.
Refrigerated
Refrigerated
ENERGY STAR® Qualified
No
Built In Bottle Filler
False
Product Overview
Self-contained, electric refrigerated wall-mounted water cooler easily accessible to physically challenged individuals. When properly installed, unit meets state and federal requirements for both children and adults as defined by the Americans with Disabilities Act (ADA). Unit is certified to NSF/ANSI 61 and 372 and meets requirements of Safe Drinking Water Act. Unit provides 50°F water at 80°F inlet water and 90°F ambient.
- Cabinet: stainless steel panels resist wear and corrosion; durable satin finish helps hide water spots and fingerprints
- Cooler top: non-corrosive stainless steel cooler top, 300 series with satin finish resists stains and corrosion and is easy to maintain, anti-splash ridge reduces splatter, contoured to insure proper drainage
- Bubbler exclusive 1-piece, chrome-plated 2 stream mound-building bubbler with non-removable anti-squirt feature and integral hood insures a satisfying drink of water
- Push bar actuation mechanism self-closing light-touch push bars on front and sides with raised letters for the visually impaired
- Automatic stream height regulator self-closing assembly is located inside unit to prevent tampering, unit resists corrosion and liming, a constant stream height is automatically maintained under line pressures that vary from 20 to 105 psi
- Inlet strainer easily cleaned in-line strainer screen traps particles of 140 micron or larger before they enter the waterway
- Temperature control positive sensing thermostat for controlling temperature of storage tank water, factory set at 50°F adjustable ± 5°F
- Storage tank non-pressurized stainless steel evaporator/storage tank for long life, waterways are certified to NSF/ANSI 61, far exceeding the requirements of the safe drinking water act
- Refrigeration system: hermetically sealed, positive start compressor with lifetime lubrication and built-in overload protection, efficient capillary sizing, large capacity dryer-strainer and self-lubricated fan cools copper/aluminum condenser, system uses R-134A refrigerant, protected by Halsey Taylor™s limited 5 year warranty
- Ventilation insure proper ventilation by maintaining 6 in. (152 mm) minimum clearance from cabinet louvers to wall
