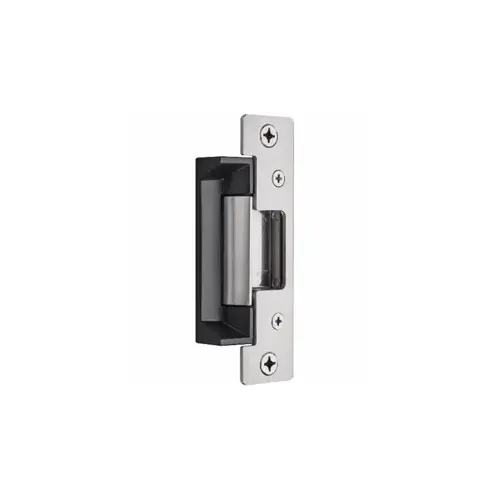

Electric Strike 12/24VDC, UL Fire Rated, Cylindrical Latches Max 5/8" Throw, 2 Faceplates: 501 & 501A (4-7/8" x 1-1/4") Satin Stainless Steel w/Latchbolt Monitor

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

HANCHETT ENTRY SYSTEMS 5300C-630-LBM Electric Strike 12/24VDC, UL Fire Rated, Cylindrical Latches Max 5/8" Throw, 2 Faceplates: 501 & 501A (4-7/8" x 1-1/4") Satin Stainless Steel w/Latchbolt Monitor

Item #: 5300C-630-LBM by Hanchett Entry Systems

Brand: HANCHETT ENTRY SYSTEMS

See reviewsSee reviews
See reviews summary
In Stock

$454.70

604.95 /each
SAVE UP TO 45.47
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 59 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Alternate Part Number-1

189974

Height

2.25

Length

10.38

Width

3.25

Voltage

12/24 VDC

Grade

Grade 1

Door Type

Metal, Wood

Electronic

Yes

Door Handing

Non-Handed

Substrate Type

Stainless Steel

Static Strength

1500

Lock Type

Cylindrical

Fail Safe / Fail Secure

Field Selectable

Latchbolt Monitoring

Yes

Product Overview
HES 5300C Series Complete 12/24VDC Universal Electric Strike

The HES 5300 Series Electric Strike is a fire-rated compact, high performance electric strike designed for low profile openings where there is limited space behind the jamb. Its strength is derived from a unique keeper pin locking design, enabling the 5300 to exceed the ratings of the frame, door and locking hardware. This field selectable fail safe/fail secure unit is easy to install and accommodates latchbolts up to 5/8" throw.

Electrical

  • .24 Amps at 12 VDC/VAC
  • .12 Amps at 24 VDC/VAC
  • DC continuous duty/AC intermittent duty only

FEATURES AND BENEFITS

Standard Features

  • Tamper resistant
  • Static strength 1,500 lbs
  • Dynamic strength 70 ft-lbs.
  • Endurance 1,000,000 cycles
  • Field selectable fail secure/ fail safe
  • Non-handed
  • Internally mounted solenoid
  • Accommodates 1/2" - 5/8" latchbolt (5/8" with 1/8" door gap)
  • Strike body depth 1-1/16"
  • Plug-in connector
  • Trim enhancer included
  • Dual voltage 12 or 24 VDC/VAC

Optional Features

  • LBM - Latchbolt monitor

CERTIFICATIONS & LISTINGS

  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • ANSI/BHMA A156.31, Grade 1

AVAILABLE CONFIGURATIONS

  • HES-5300-630
  • HES-5300-LBM
