Features
- Hand-hold your loaded lines
- Use for spinnaker sheet systems on dinghies, sportsboats, and medium keelboats
- Ratchet blocks are hand and crew savers
- Allows a line to be eased instantly with control
- On/Off switch allows the ratchet to be turned off in light air
- Hardkote-anodized aluminum sheaves
- Stainless steel swivel shackle
- Sheave Diameter: 2 1/4" (57 mm)
- Max. Line Diameter: 3/8" (10 mm)
- Max. Working Load (MWL): 1800 lb. (816 kg)
- Breaking Load: 4500 lb. (2041 kg)
- Weight: 15.7 oz. (445 g)
- Length: 4 15/16" (125 mm)
Diameter
3/8 Inch or 10 mm
Length
4 15/16 Inches
Type
Triple
Weight
15.7 Ounces
Direction
Any
Safe Working Load
1800 Pounds
Mount Type
Swivel Shackle
Ball Bearing
Plastic
Becket
Becket
Integral Cleat
Integral Cam
Ratchet
Ratcheting
Sheave Diameter
57 mm
Product Overview

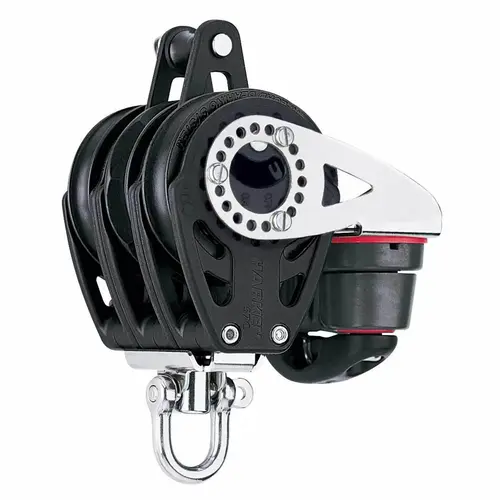

Harken 57mm Carbo Triple Ratchet Block with Becket and Cam for controlled easing of a 4:1 or 5:1 purchasing system. Carbo Ratchets blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. Lightweight Carbo Ratchets are available in 40mm, 57mm and 75mm sizes. All the Carbo Ratchets feature a recessed On-Off switch that is easily operated from either side. The 40mm cam-arm versions work in ratchet mode only. Commonly 57mm blocks are for jibsheets and spinnakers on medium dinghies. The 40mm, 57mm and 75mm Carbo Ratchamatic is adjustable for many applications and weather conditions. The load-sensing ratchet block rolls freely in both directions under low loads, then engages the ratchet automatically as loads increase. With 180 degree wrap, you get a 10:1 holding power.
