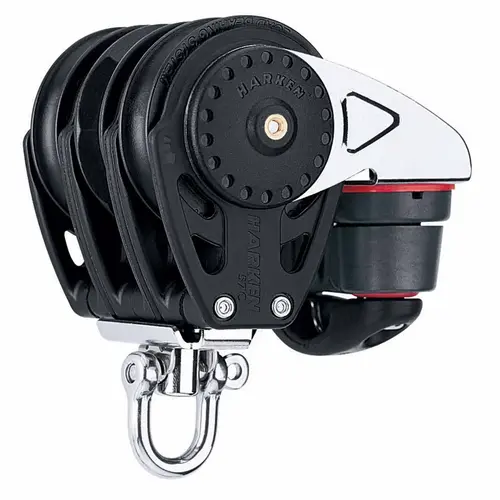

HARKEN 2629 57mm Carbo Ratchamatic Triple Block with Cam

Item #: 2629 by HARKEN

Brand: HARKEN

See reviewsSee reviews
See reviews summary
In Stock

$515.07

/each
SAVE UP TO 51.51
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1000+ units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
  • Adjustable ratchet at higher or lower loads
  • Eight-facet sheave holds line securely
  • Ratchet blocks are hand and crew savers
  • Allows a line to be eased instantly with control
  • On/Off switch allows the ratchet to be turned off in light air
  • Hardkote-anodized aluminum sheaves
  • Stainless steel swivel shackle
  • Sheave Diameter: 2 1/4" (57 mm)
  • Max. Line Diameter: 3/8" (10 mm)
  • Max. Working Load (MWL): 1500 lb. (680 kg)
  • Breaking Load: 3750 lb. (1700 kg)
  • Weight: 14.9 oz. (421 g)
  • Length: 4 1/16" (103 mm)

Diameter

3/8 Inch or 10 mm

Length

4 1/16 Inches

Type

Triple

Weight

14.9 Ounces

Direction

Any

Safe Working Load

1500 Pounds

Mount Type

Swivel Shackle

Ball Bearing

Plastic

Becket

No Becket

Integral Cleat

Integral Cam

Ratchet

Ratcheting

Sheave Diameter

57 mm

Product Overview
Harken 57mm Carbo Ratchamatic Triple Block with Cam Cleat for controlled easing of a 10:1 purchasing system. Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. Lightweight Carbo Ratchets are available in 40mm, 57mm and 75mm sizes. All the Carbo Ratchets feature a recessed On-Off switch that is easily operated from either side. The 40mm cam-arm versions work in ratchet mode only. Commonly 57mm blocks are for jibsheets and spinnakers on medium dinghies. The 40mm, 57mm and 75mm Carbo Ratchamatic is adjustable for many applications and weather conditions. The load-sensing ratchet block rolls freely in both directions under low loads, then engages the ratchet automatically as loads increase. With 180 degree wrap, you get a 10:1 holding power.
