30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Hand-hold your loaded lines
- Use for vang systems on dinghies, sportsboats, and medium keelboats
- Ratchet blocks are hand and crew savers
- Allows a line to be eased instantly with control
- On/Off switch allows the ratchet to be turned off in light air
- Hardkote-anodized aluminum sheaves
- Stainless steel swivel shackle
- Sheave Diameter: 2 15/16" (75 mm)
- Max. Line Diameter: 1/2" (12 mm)
- Max. Working Load (MWL): 900 lb. (408 kg)
- Breaking Load: 2250 lb. (1020 kg)
- Weight: 16.1 oz. (456 g)
- Length: 6 3/16" (157 mm)
Weight
16.1 Ounces
Direction
Any
Type
Single Fiddle
Length
6 3/16 Inches
Safe Working Load
1212 Pounds
Diameter
1/2 Inch or 13 mm
Sheave Diameter
75 mm
Integral Cleat
Integral Cam
Becket
No Becket
Ratchet
Ratcheting
Ball Bearing
Plastic
Mount Type
Swivel Shackle
Product Overview

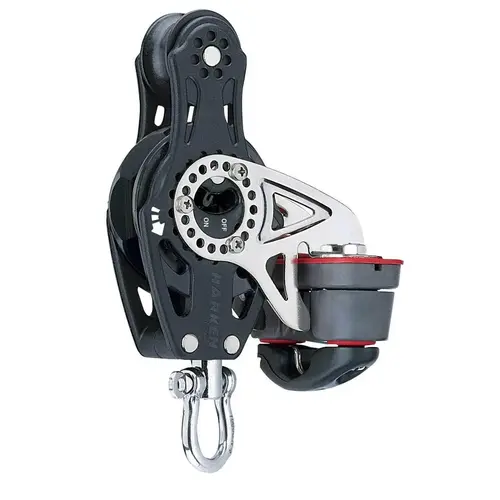

Harken 75mm Carbo Fiddle Ratchet Block with Cam and locking system allows the shackle to lock at 90-degree's. Carbo Ratchets blocks allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing. Lightweight Carbo Ratchets are available in 40mm, 57mm and 75mm sizes. All the Carbo Ratchets feature a recessed On-Off switch that is easily operated from either side. The 40mm cam-arm versions work in ratchet mode only. Commonly 75mm fiddle blocks are for vang systems on larger to medium sized dinghies or keelboats. The 40mm, 57mm and 75mm Carbo Ratchamatic is adjustable for many applications and weather conditions. The load-sensing ratchet block rolls freely in both directions under low loads, then engages the ratchet automatically as loads increase. With 180 degree wrap, you get a 10:1 holding power.
