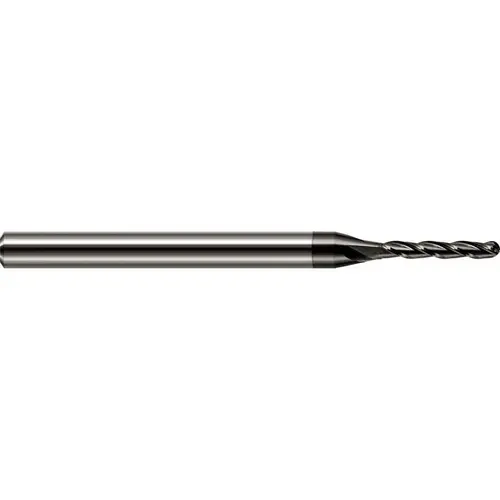

Ball End Mill: 3/64" Dia, 1/4" LOC, 3 Flute, Solid Carbide Amorphous Diamond

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Harvey's 32247-C4 Ball End Mill: 3/64" Dia, 1/4" LOC, 3 Flute, Solid Carbide Amorphous Diamond

Item #: 32247-C4 by Harvey

See reviewsSee reviews
See reviews summary
In Stock

$80.98

/each
SAVE UP TO 8.10
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Helix Angle

20

Number of Flutes

3

Chipbreaker

No

Length Type

Long

Cutting Direction

Right Hand

Series

Miniature End Mills - Ball - Long Flute, Miniature End Mills

System of Measurement

Fractional Inch

Variable Helix

Yes

Coating/Finish

Amorphous Diamond

Coolant Through

No

Length of Cut (Inch)

1/4

Manufacturers Catalog Number

32247-C4

Material Grade

Carbide

Overall Length (Decimal Inch)

2.5000

Overall Length (Inch)

2-1/2

Primary Workpiece Material

Hard Material

Primary Workpiece Material Code

H

Shank Diameter (Decimal Inch)

0.1250

Shank Diameter (Inch)

1/8

UNSPSC Code

27112803

Vendor Drop Ship

N

Coating Classification

PVD

End Mill Material

Solid Carbide

Extended Reach

No

Flute Direction

Right Hand

Helix Style

Variable

Material Removal Type

Finishing

Mill Diameter (Decimal Inch)

0.0470

Mill Diameter (Inch)

3/64

Secondary Workpiece Material

Steel

Single Or Double End

Single

Variable Index

No

Reach Length (Inch)

1/4

Nose Radius (Decimal Inch)

0.0235

Secondary Workpiece Material Code

P

Mill Diameter Tolerance

+0.0005/-0.0005 in

Reach Length (Decimal Inch)

0.2500

Mill Diameter (mm)

1.20

Shank Diameter Tolerance

h6

Product Overview
Ball End Mill: 3/64" Dia, 1/4" LOC, 3 Flute, Solid Carbide 2-1/2" OAL, 1/8" Shank Dia, 20 deg Helix, Amorphous Diamond Coated, Single End, Series Miniature End Mills - Ball - Long Flute, Miniature End Mills
