.webp?88ede93696e4222e8639ef553eb09750 "Heavy-Duty 105 degree Hold Open 3/4\" Long Spindle Overhead Concealed Closer Body With Mounting Clips")

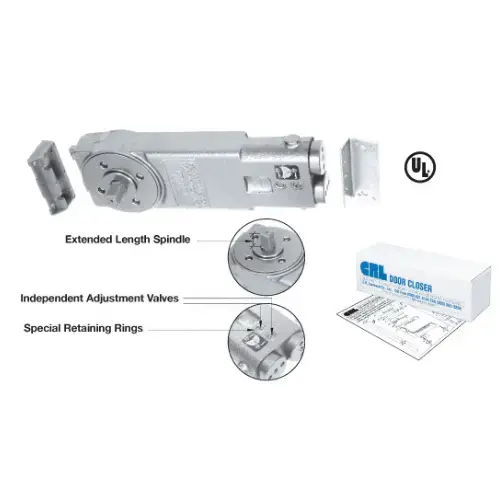

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails have a longer spindle approximately 3/4" (19 mm), the preferred length when used in conjunction with Patch Hardware Fittings. The closer has dual action valves for closing operation (one valve for closing, one valve for latching). 90 degree and 105 degree Hold Open and No Hold Open models are available. Interchangeable with International, Jackson and similar brands of Overhead Concealed Closers. Mounting Clips and instructions are included with each Door Closer Body.
Extended Length Spindle 3/4" (19 mm) Length Spindle for use with Patch Fittings and Door Rail Hardware or when extra reach is needed.
Independent Adjustment Valves Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL Heavy-Duty 105 degree Hold Open 3/4" Long Spindle Overhead Concealed Closer Body With Mounting Clips
Item #: CRL9270 by CR Laurence
Brand: CRL
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- Extended 3/4" (19 mm) Long Spindle for Use with Patch Fittings and Door Rail Hardware
- New Adjustable Models
- UL Listed
- Conveniently Packaged with Templates and Instructions
Closer Body Length
11-5/8 in (295 mm)
Closer Body Width
3-11/16 in (94 mm)
Type
105º Hold Open
Spring Size
Heavy-Duty
Hold Open
105°
Maximum Door Weight
200
UL Listed
Yes
Includes
CRL8010FS
Door Height
96
Closer Type
Overhead Concealed
Recommended Door Type
Aluminum,Hollow Metal
Americans with Disabilities Act (ADA) Compliant
Yes
Spindle Length (Inches)
3/4"
Body Length
11-5/8
Body Height
1-11/16
Body Width
3-11/16
Handing
Double Acting
Spindle
3/4
Product Overview
This CRL Overhead Concealed Closer for Patch Fittings and Door Rails have a longer spindle approximately 3/4" (19 mm), the preferred length when used in conjunction with Patch Hardware Fittings. The closer has dual action valves for closing operation (one valve for closing, one valve for latching). 90 degree and 105 degree Hold Open and No Hold Open models are available. Interchangeable with International, Jackson and similar brands of Overhead Concealed Closers. Mounting Clips and instructions are included with each Door Closer Body.
Extended Length Spindle 3/4" (19 mm) Length Spindle for use with Patch Fittings and Door Rail Hardware or when extra reach is needed.
Independent Adjustment Valves Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
