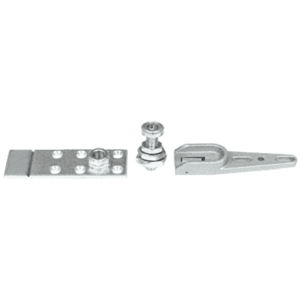

CRL CRL8010HDP Heavy-Duty Adjustable Dual-Purpose Bottom Pivot Set

Item #: CRL8010HDP by CR Laurence

11 reviews
See reviews summary
In Stock

$19.86

/each
SAVE UP TO 1.99
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 911 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • Designed for end load and side load center hung door arm applications
  • Adjustable bottom pivot mounts directly to floor or threshold surfaces
  • Compatible with 1" deep bottom door rail configurations
  • Rated for maximum supported door weight of 200 pounds
  • Supports heavier doors used in higher traffic installation areas
  • Solid steel base plate includes extra mounting hole locations
  • Allows 3/16" vertical height adjustment with door on or off pivot

Shipping Weight

1 lb (454g)

Mounting Type

Floor or Threshold

Type

End-Load Arm or Side-Load Arm

Handing

Non Handed

Brand

Jackson

Door Weight

200

Pivot Type

Center Hung

Recommended Door Type

Aluminum Store Front

Pivot Bottom

Yes

Product Overview
CRL Heavy-Duty Adjustable Dual-Purpose Bottom Pivot Set is Ideally used for 1" (25 mm) deep bottom door rail applications. It can also be used in place of the standard bottom pivot set. It comes with a solid steel base plate to support heavier doors with traffic area with additional mounting holes. A 3/16" (5 mm) height adjustment is possible with the door on or off of the pivot. CRL Heavy-Duty Adjustable Dual-Purpose Bottom Pivot Set is suitable for both end-load or side load center hung applications. It offers a great weighing capacity up to 200 lbs. (90.7 kg). Minimum order is one each. DS 07/11/2016

From Manufacturer

This CRL Heavy-Duty Adjustable Dual-Purpose Pivot Set is for use with 1" (25 mm) deep bottom door rail applications, and can be used in place of the standard Bottom Pivot Set. The solid steel base plate has additional mounting holes to support heavier doors with higher traffic. A 3/16" (5 mm) height adjustment is possible with the door on or off of the pivot. This Pivot is suitable for either end-load or side-load center-hung applications. Maximum weight capacity is 200 lbs. (90.7 kg). Minimum order is one each.
Important Notes

Maximum Weight Capacity: 200 lbs. (90.7 kg).
