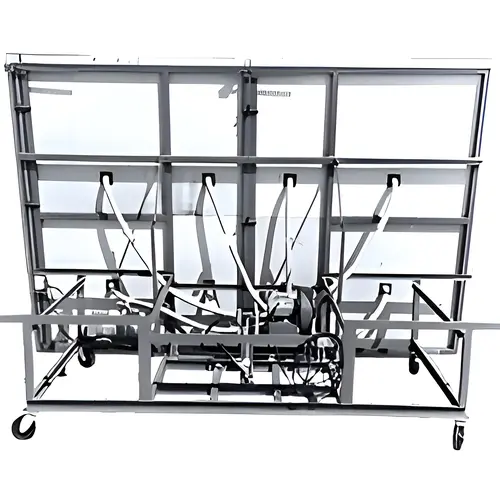

This CRL Heavy-Duty Air Flotation for CRL CHT Series Custom Hydraulic Tilt-Top Glass Cutting Table makes maneuvering glass on the table's surface safe and easy. Installed during the construction of the table, a sealed cavity beneath the table's surface which is perforated with hundreds of small openings, is filled with high pressure air provided by two, three horsepower motors. When glass is placed on the table while the air flotation is powered, the forced air beneath the glass raises the glass as it escapes around it's edges. This cushion of air lets the operator move the glass effortlessly into position for scoring or over a break bar for break out.
The system allows flotation of glass up to 3/4" (19 mm) thick on the CHT10X12 table and up to 1/2" (12 mm) thick on the CHT12X18 table. If 3/4" (19 mm) thick glass flotation is required for the CHT12X18 a third three horsepower motor can be special ordered.
NOTE: This item is not available for shipment to CRL customers outside of the United States.
For questions or ordering information in regards to this or any other CRL product, please contact DK Hardware Sales.
Product Warning:
CRL Heavy-Duty Air Flotation Systems for CRL Custom Hydraulic Tilt-Top Glass Cutting Tables cannot be retro-fitted to existing cutting tables. They must be ordered at the same time the CRL CHT Series table is ordered.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

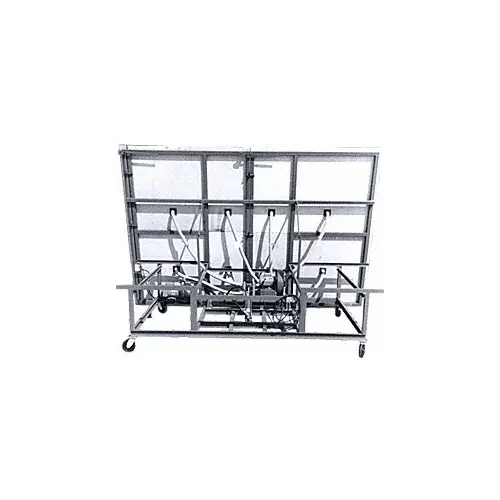

CRL HDAF10X12 Heavy-Duty Air Flotation System for 10' x 12' Custom Hydraulic Tilt-Top Glass Cutting Table
Item #: HDAF10X12 by CR Laurence
See reviewsSee reviews
In Stock
$20,720.00
/eachSAVE UP TO 2072.00
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business day
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Plenum Air Distribution to Utilize Entire Table Surface
- Powerful 220 Volt 3 Phase Motors
- Can be Installed Across Width or Along Length of Table
Power Requirement
220 Volts, 3 Phase
Horsepower
3 (X2 Motors)
F.O.B
Red Oak, TX.
Table Width (Inches)
120
Table Length (Inches)
144
Configuration
Hydraulic Tilt
Voltage
220
Hydraulic
Yes
Table Length
144 in. (3658 mm)
Table Width
120 in. (3048 mm)
Product Overview
This CRL Heavy-Duty Air Flotation for CRL CHT Series Custom Hydraulic Tilt-Top Glass Cutting Table makes maneuvering glass on the table's surface safe and easy. Installed during the construction of the table, a sealed cavity beneath the table's surface which is perforated with hundreds of small openings, is filled with high pressure air provided by two, three horsepower motors. When glass is placed on the table while the air flotation is powered, the forced air beneath the glass raises the glass as it escapes around it's edges. This cushion of air lets the operator move the glass effortlessly into position for scoring or over a break bar for break out.
The system allows flotation of glass up to 3/4" (19 mm) thick on the CHT10X12 table and up to 1/2" (12 mm) thick on the CHT12X18 table. If 3/4" (19 mm) thick glass flotation is required for the CHT12X18 a third three horsepower motor can be special ordered.
NOTE: This item is not available for shipment to CRL customers outside of the United States.
For questions or ordering information in regards to this or any other CRL product, please contact DK Hardware Sales.
Product Warning:
CRL Heavy-Duty Air Flotation Systems for CRL Custom Hydraulic Tilt-Top Glass Cutting Tables cannot be retro-fitted to existing cutting tables. They must be ordered at the same time the CRL CHT Series table is ordered.
