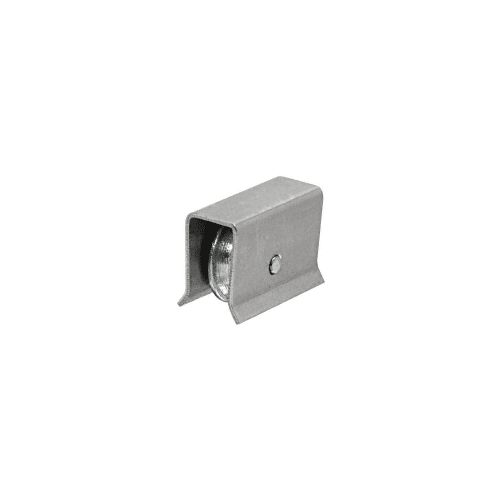

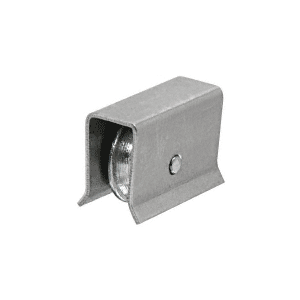

CRL D649 Heavy-Duty Ball Bearing Wheel Assembly for H-Bars
Item #: D649 by CR Laurence
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Designed for sliding rear doors with D610, D615, LK610, KK610, and MC610 H-Bars
- Ideally suitable for sliding glass panels fabricated with up to 15 square feet of 1/4" (6.3 mm) plate glass
- Maximum size of large panel up to 15 15 square feet
Housing Width
5/16" (8 mm)
Wheel Width
3/16" (4.8 mm)
Housing Height
1/2" (13 mm)
Housing Length
3/4" (19 mm)
Type
Heavy Duty W/ Ball Bearing Wheel
These CRL Heavy-Duty Ball Bearing Wheel Assemblies are crafted to be used in Custom Showcases with sliding rear doors with D610, D615, LK610, KK610, and MC610 H-Bars. Press fits easily into the bottom of the H-bar. These are ideally suitable for sliding glass panels fabricated with up to 15 square feet of 1/4" (6.3 mm) plate glass or other glazing material. Four D649 roller ball bearings should be used for larger panels up to a maximum size of 15 square feet. Technical Specifications: - Case Qty: 100 Housing Height: ½” (12.7mm) Housing Width: 5/16” (7.9mm) Shipping Weight: 1oz (23g) Wheel Width: 3/16” (4.8mm) DS 06/28/2016
From Manufacturer
These CRL Heavy-Duty Ball Bearing Wheel Assemblies are used in our Custom Showcases with sliding rear doors with D610, D615, LK610, KK610, and MC610 H-Bars. This ball-bearing roller unit is fabricated in a stamped steel housing that press-fits into the bottom of the H-Bar. For sliding glass panels fabricated with up to 15 square feet of 1/4" (6.3 mm) plate glass or other glazing material. For larger panels up to a maximum size of 15 square feet, four D649 ball-bearing steel rollers should be used.
