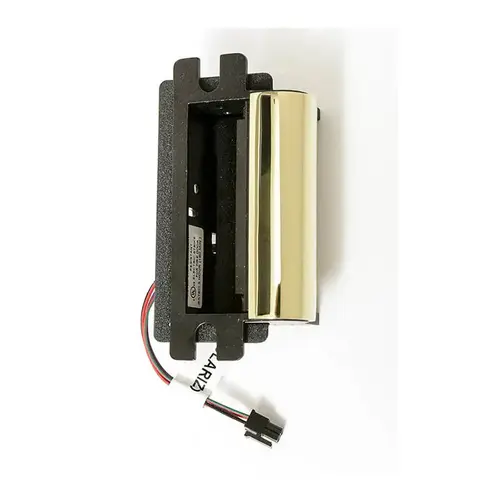

HES 1006 606 Heavy Duty internally Mounted Electric Strike for Single Door Satin Brass
Item #: 1006 606 by HES
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- UL 10C fire-rated, 3 hour single door (fail secure only)
- UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
- 1,000,000 Cycle Endurance
- Non Handed
- CAN4-S104(ULC-S104) fire door conformant
- ANSI A250.13-2003 windstorm listed
- Internally Mounted Solenoid
- UL 1034 burglary-resistant listed and suitable for outdoor use
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- MEA New York City accepted
- Florida Building Code approved
- Patents #6021038 & 6595564 & 9,183,976
Finish
Satin Brass
Function
Electrically Unlocked (Fail Secure)
Series
1006 Series
Strike
12VDC / 24VDC Electric Strike Body
Material
Stainless Steel
Approved for Commercial Use
Yes
UL Listed
Yes
Product Class
Commercial
BHMA Certification
Grade 1
Voltage
12, 24
Configuration
Universal
ANSI Certification
A156.31, A250.13
Fire Rated
3 Hours {A}, Yes
Origin
USA
BAA Qualified
Yes
Package Height
2.25"
Package Length
10.5"
Package Volume
79.734375
Package Width
3.375"
Amp Draw
.45 @ 12V .25 @ 24V
Frame Application
Metal or Wood
Holding Force
3000
Keeper Size
1 In.
Operating Voltage
12VDC/24VDC
Package Qty
1
Special Marks
Fire rated 3 Hours {A}
Base Material
Brass
Switch Type
None
Use With
Cylindrical Locks, Mortise Exit and Latch Locks
Grade
Grade 1
Application
Multi-Application
Color Code
606/US4
For Use With
Works With All Cylindrical and Mortise Locksets With or Without a Deadbolt
Finish Description
Satin Brass
Product Height
4-7/8 Inch
Product Length
2-1/16 Inch
Product Width
1-11/16 Inch
ADA Compliant
No
Finish Family
Satin Brass
Product Material
Stainless steel
Duty
Fail Secure
Static Strength
2500 lbs.
Function Family
Electric Strike
Dynamic Strength
350 Foot-Lbs.
Features
Tamper-Resistant; Non-Handed; Accommodates Up to 1" [25.4mm] Deadbolt; Plug-in Connector; Full Keeper Shims for Horizontal Adjustment
Product Type
Electric Strike
Manufacturer Parent
Assa Abloy
Sub-Series
PA_Electronic_Access_Control_Parts_hes_1
Dimension
4-7/8" x 2-1/16" x 1-11/16"
Manufacturer Warranty
1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
UL Listing Type
UL 1034, UL294, UL10C
Power Supply
Wired
Hazardous Material
No
Finish code
606
No of inners
1
Product Overview
Fail Secure, Universal 12/24VDC Electric Strike, Body Only, Satin Brass
The 1006 series is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs. of static strength, 350 ft-lbs. of dynamic strength and factory tested to exceed 1,000,000 cycles of operation, the 1006 is in a class of its own.
The 1006 Series is versatile and strong.
The 1006 series is a strong and versatile electric strike. The dual interlocking plunger design and heavy duty stainless steel construction, enables it to exceed every standard. With multiple faceplate options, the 1006 will fully accommodate every lock.
