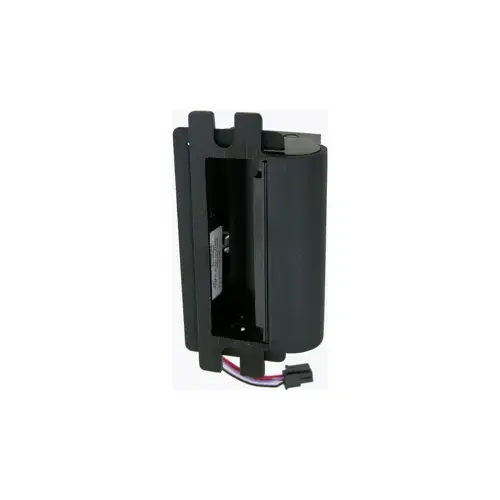

HES 1006 BLK Fire Rated Electric Strike 12/24VDC, FSE, Mortise/Cylindrical/ Deadbolts/Rim Exits, Body Only, BLK Black

Item #: 1006 BLK by HES

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$569.25

/each
SAVE UP TO 56.92
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 141 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features
  • UL 10C fire-rated, 3 hour single door (fail secure only)
  • UL 10C fire-rated, 1-1/2 hour double door (fail secure only)
  • 1,000,000 Cycle Endurance
  • Non Handed
  • CAN4-S104(ULC-S104) fire door conformant
  • ANSI A250.13-2003 windstorm listed
  • Internally Mounted Solenoid
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • ANSI/BHMA A156.31, Grade 1
  • NFPA-252 fire door conformant
  • ASTM-E152 fire door conformant
  • MEA New York City accepted
  • Florida Building Code approved
  • Patents #6021038 & 6595564 & 9,183,976

Fire Rated

3 Hours {A}, Yes

ANSI Certification

A156.31, A250.13

Finish

Black

BHMA Certification

Grade 1

Configuration

Universal

Product Class

Commercial

Voltage

12/24 Volt

UL Listed

Yes

Approved for Commercial Use

Yes

Material

Stainless Steel

Function

Fail Secure

Series

1006 Series

Strike

12VDC / 24VDC Electric Strike Body

Use With

Cylindrical Locks, Mortise Exit and Latch Locks

Package Volume

79.734375

Amp Draw

.45 @ 12V .25 @ 24V

Color

Applied

Keeper Size

1 In.

Grade

Grade 1

Special Marks

Fire rated 3 Hours {A}

Operating Voltage

12VDC/24VDC

Application

Multi-Application

Package Qty

1

Package Height

2.25"

Package Width

3.375"

Color Code

Black

Origin

USA

Holding Force

3000

BAA Qualified

Yes

Switch Type

None

Base Material

Aluminum / Steel

Package Length

10.5"

Frame Application

Metal or Wood

Finish Description

Black

Product Type

1000 Series

Handing

Non-Handed

Alternate Part Number-1

126030

Throw

1/2", 5/8"

Lockset Type

Cylindrical, Mortise, Specialty

Fail Status

Fail Secure

Height

2

Length

10.75

Width

3.25

Dimension

4-7/8" x 2-1/16" x 1-11/16"

Manufacturer Warranty

1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty

UL Listing Type

UL 1034, UL294, UL10C

Power Supply

Wired

Hazardous Material

No

Strike Dimension

4-7/8"

Finish code

BLK

No of inners

1

Product Overview
Fail Secure, 12 or 24V/DC, BLK Black
1006 SeriesElectric Strike

Works with all cylindrical and mortise locksets with or without a deadbolt

The strongest, most versatile electric strike available.

The HES 1006 Series Electric Strike is the strongest and most versatile electric strike available. The dual interlocking plunger design and heavy duty stainless steel construction enables it to exceed every standard developed for electric strikes. With multiple faceplate options, the HES 1006 will fully accommodate every lock designed to work within an ANSI 4-7/8" strike plate. Tested to exceed 3,000 lbs of static strength, 350 ft-lbs of dynamic strength and factory tested to exceed 1 million cycles of operation, the HES 1006 is in a class of its own.

Features:
  • Stainless steel construction
  • Tamper resistant
  • Static strength 2,500 lbs
  • Dynamic strength 350 ft-lbs
  • (fail secure)
  • Endurance 1 million cycles
  • Fail secure (standard)
  • Non-handed
  • Accommodates up to 1" [25.4mm] deadbolt
  • Plug-in connector
  • Full keeper shims for horizontal adjustment
  • Trim enhancer
  • Strike body depth 1-11/16" [43mm]
  • SecuriCare five-year, no-fault, no questions asked warranty
  • (Addition of HES SMART Pac® III extends the warranty to 10 years)
Certifications:
  • ANSI/BHMA A156.31, Grade 1
  • UL 1034 burglary-resistant listed and suitable for outdoor use
  • UL 294 listed
  • RoHS compliant
  • UL 10C fire rated, 3-hour single door
  • (fail secure only)
  • UL 10C fire rated, 1-1/2 hour double door
  • (fail secure only)
  • CAN/ULC-S104 fire door conformant
  • NFPA-252 fire door compliant
  • ASTM-E152 fire door compliant
  • ANSI/SDI A250.13 windstorm resistant
  • Florida Building Code approved TAS 201, 202, 203
  • ANSI-ASTM E330
  • Sustainability documentation
Electrical (DC Continuous Duty):
  • Metal
  • Wood
Electrical (DC Continuous Duty):
  • Dual Voltage 12/24 VDC
  • 450 mA at 12 VDC / 250 mA at 24 VDC
Finishes:
  • 630 - Satin stainless steel
  • 605 - Bright brass
  • 606 - Satin brass
  • 612 - Satin bronze
  • 613 - Bronze toned
  • 629 - Bright stainless steel
  • BLK - Black
