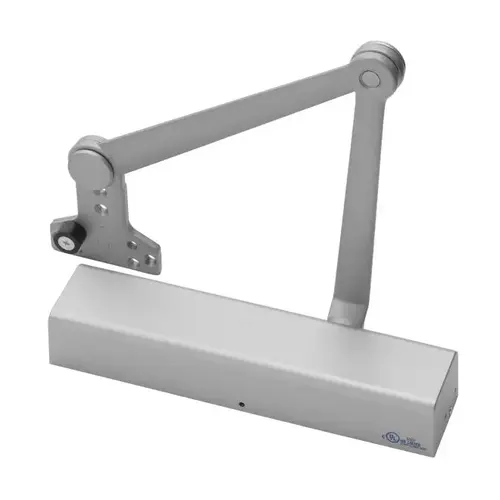

Yale 2721 689 Heavy Duty Non Hold Open Door Closer with Parallel Arm and Removable Stop Aluminum Finish
Item #: 2721 689 by Yale
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Adjustable Spring Sizes from 1 to 6
- Certified for ANSI/BHMA A156.4 Grade 1
- UL and cUL listed. This includes compliance to UL10C.
- Meets requirements for Americans with Disabilities Act (ADA) and ANSI/BHMA A117.1
- Non Handed
- 10-year limited warranty
- Tri Packed with Regular, Parallel, and Top Jam Mounting
- Aluminum
- Tri-packed: regular, parallel or top jamb mounting
- Sleeve Nuts Furnished Standard with All Models
- Full Plastic Cover
Finish
Aluminum
Series
2700 Series
Color
Aluminum Painted
Color Code
689/US28
Package Qty
1
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Manual
Mounting Type
Parallel Arm (Push Side) Mount
Grade
ANSI/BHMA Grade 1
Application
Commercial
Hand
Non-Handed
Handing
Non-Handed
Spring Size
Adjustable 1-6
Function
Stop Only
Door Thickness
1-3/4 inch
Door Size
42" (Interior); 36" (Exterior)
Maximum Door Opening
180°
Finish Description
Aluminum Painted
ADA Compliant
YES
Finish Family
Aluminum
Product Material
Aluminum
Closer Cover
Full Plastic Cover
Fasteners
Self Drilling Screws
Standards
Grade 1 - ANSI/BHMA A156.4; UL and cUL Listed; UL10C; ANSI/BHMA A117.1
Closer Arm Type
Tri-Pack Arm (Non-Handed)
Function Family
Non Hold Open Door Closer
Features
Rugged Construction; Adjustments for Backcheck; Closing and Latch Speed; Rack and Pinion Operation and a Variety of Arm Options
Product Type
Door Closer/Holder/Stop
Manufacturer Parent
Assa Abloy
Sub-Series
YaleCom-2721
Dimension
2-7/8" x 13" x 2-1/8" Projection (with cover)
Material
Aluminum
Mounting Style
Regular, Parallel, or Top Jamb Mounting
Hold Open
No
Manufacturer Warranty
Limited 10 Year Warranty
UL Listing Type
UL / cUL / UL10C Listed
Closer Type
Surface Mounted Closer
Hazardous Material
No
Finish code
689
No of inners
1
Mounting Hole Pattern
3/4" x 12" Rectangular Mounting
Product Overview
Door Closer, Stop Only, Size 1-6, Aluminum
Yale 2700 Series Architectural Door Closers are ideal for commercial applications where ease of use, installation and aesthetics are required at an economical price. The 2700 Series features rugged construction, adjustments for backcheck, closing and latch speed, and rack and pinion operation.
The 2700 series features rugged construction, adjustments for backcheck, closing and latch speed, rack and pinion operation and a variety of arm options.
