CRL HDTTW606 Heavy-Duty Tilt-Top 60" Horizontal Glass Washer
Item #: HDTTW606 by CR Laurence
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Available for Purchase or Lease
- Built-In Pre-Spray Cabin
- Compatible with Aqua-Miser Zero Water System
- Extra Rollers Prevent Water Contamination
- Flowmeters in Each Compartment
- High Production 60" (1.52 m) Washer for Coated Glass Saves Water
- Ideal for All Coated Glass Including Pre-Tempered
- Stainless Steel Pumps
Height
48 in (1219 mm)
Length
120 in (3048 mm)
Width
84" (2134 mm)
F.O.B
Cicero, Il.
Main Body
130" x 95" x 50" (3.30 x 2.41 x 1.27 m)
Blower
57" x 63" x 60" (1.45 x 1.60 x 1.52 m)
Product Overview

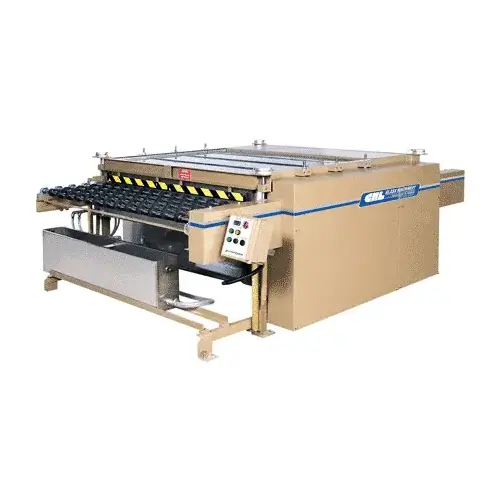

The CRL HDTTW606 Heavy-Duty Tilt-Top Glass Washer features a stainless steel cabin, covers and pans for pre-spray, detergent, and rinse compartments. There are also stainless steel brush-and-roller journals in wet sections, plus slide-out stainless steel tanks, pitched for easy rinsing and cleaning. Floating upper rollers minimize scuffing of coated glass, while the upper roller pivot design eliminates thin glass breakage. Glass processing at 35 FPM (10.7 MPM) is standard.
Lubrication fittings on all brush and conveyor bearings make maintenance easy. Rollers in wet sections are Nitrile covered and precision ground. The brushes are 6" (152 mm) in diameter and are compatible with Low-e glass. 1/2 HP stainless steel pumps are used in recirculated detergent and rinse. All panels and electric equipment are UL certified. A convenient operator control station is on the loading conveyor and features sequential, one-button starting, a detergent temperature display, and low detergent level alarm.
Popular options include the Patented Rapid-Height One Second thickness change-over, Hydraulic Tilt-Top Lifters, and prep for Aqua-Miser® or similar Total Water Recirculation System.
Controls: All controls are built to OSHA requirements, utilizing CE, CSA and UL Certified components. Wiring for three phase, 60 cycle, 230V AC power.
Utilities:
Electrical - Six Motors, Total 19.25 HP (29.35 kw*) *Includes Blower.
Voltage - Three Phase, 60 Cycle, 230V AC
Power - 125 AMP @ 230V AC
Water - 1/2" NPT Inlet Thread Connection
Converter also available to operate the HDTTW606 at Single Phase, 60 Cycle, 220V AC.
SPECIFICATIONS:
Height: 44" (1.12 m)
Footprint: 122" x 92" (3.10 x 2.34 m)
Roller Working Height: 36" (914 mm)
Lubrication fittings on all brush and conveyor bearings make maintenance easy. Rollers in wet sections are Nitrile covered and precision ground. The brushes are 6" (152 mm) in diameter and are compatible with Low-e glass. 1/2 HP stainless steel pumps are used in recirculated detergent and rinse. All panels and electric equipment are UL certified. A convenient operator control station is on the loading conveyor and features sequential, one-button starting, a detergent temperature display, and low detergent level alarm.
Popular options include the Patented Rapid-Height One Second thickness change-over, Hydraulic Tilt-Top Lifters, and prep for Aqua-Miser® or similar Total Water Recirculation System.
Controls: All controls are built to OSHA requirements, utilizing CE, CSA and UL Certified components. Wiring for three phase, 60 cycle, 230V AC power.
Utilities:
Electrical - Six Motors, Total 19.25 HP (29.35 kw*) *Includes Blower.
Voltage - Three Phase, 60 Cycle, 230V AC
Power - 125 AMP @ 230V AC
Water - 1/2" NPT Inlet Thread Connection
Converter also available to operate the HDTTW606 at Single Phase, 60 Cycle, 220V AC.
SPECIFICATIONS:
Height: 44" (1.12 m)
Footprint: 122" x 92" (3.10 x 2.34 m)
Roller Working Height: 36" (914 mm)
