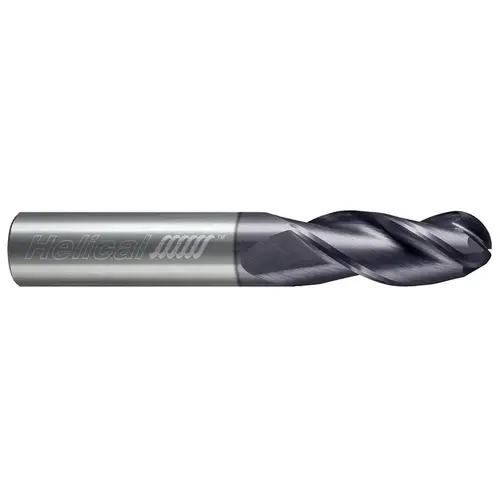

Helical Solutions 12122 Ball End Mill: 1/4" Dia, 3/4" LOC, 3 Flute, Solid Carbide APLUS
Item #: 12122 by Helical Solutions
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Spiral
Shank Type
Straight-Cylindrical
Number of Flutes
3
Chipbreaker
No
Length Type
Standard
Cutting Direction
Right Hand
Series
3 Flute, Ball (Aplus), End Mills for Steels, Tool Steels, & Cast Iron
System of Measurement
Fractional Inch
Variable Helix
No
Coating/Finish
APLUS
Coolant Through
No
Length of Cut (Inch)
3/4
Manufacturers Catalog Number
12122
Material Grade
Carbide
Overall Length (Decimal Inch)
2.5000
Overall Length (Inch)
2-1/2
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.2500
Shank Diameter (Inch)
1/4
UNSPSC Code
27112803
Vendor Drop Ship
N
Coating Classification
PVD
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Material Removal Type
Roughing
Mill Diameter (Decimal Inch)
0.2500
Mill Diameter (Inch)
1/4
Single Or Double End
Single
Variable Index
No
Reach Length (Inch)
3/4
Nose Radius (Decimal Inch)
0.1250
Mill Diameter Tolerance
+0.0000/-0.0020 in
Reach Length (Decimal Inch)
0.7500
Overall Length Tolerance
+0.0620/-0.0620 in
TIR Maximum (Decimal Inch)
0.0005
Shank Diameter Tolerance
h6
Product Overview
Ball End Mill: 1/4" Dia, 3/4" LOC, 3 Flute, Solid Carbide 2-1/2" OAL, 1/4" Shank Dia, APLUS Coated, Single End, Series 3 Flute, Ball (Aplus), End Mills for Steels, Tool Steels, & Cast Iron
