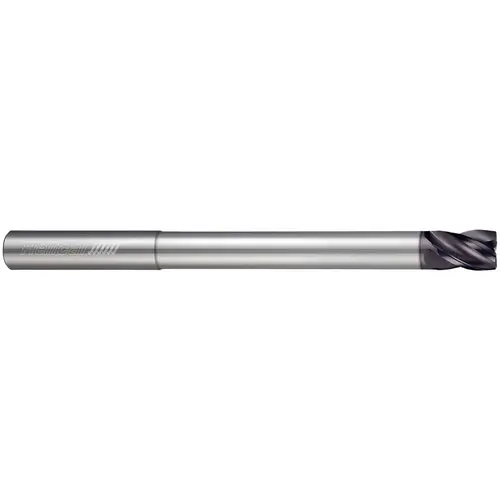

Helical Solutions 59003 Corner Radius End Mill: 1/8" Dia, 1/4" LOC, 0.0150" Radius, 3 Flute, Solid Carbide Zplus
Item #: 59003 by Helical Solutions
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
For Use With
High Precision Toolholders
Flute Type
Spiral
Material Application
Aluminum
Shank Type
Straight-Cylindrical
End Type
Corner Radius
Number of Flutes
3
Pitch
Coarse
Chipbreaker
No
Length Type
Stub
Cutting Direction
Right Hand
Series
H35AL-3
Variable Helix
No
Coating/Finish
Zplus
Coolant Through
No
Corner Radius (Decimal Inch)
0.0150
Length Of Cut (Decimal Inch - 4 Decimals)
0.2500
Length of Cut (Inch)
1/4
Overall Length (Decimal Inch)
1.5000
Overall Length (Inch)
1-1/2
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
Shank Diameter (Decimal Inch)
0.1250
Shank Diameter (Inch)
1/8
UNSPSC Code
27112803
Vendor Drop Ship
N
Centercutting
Yes
Coating Classification
PVD
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Helix Style
Medium
Material Removal Type
Roughing & Finishing
Mill Diameter (Decimal Inch)
0.1250
Mill Diameter (Inch)
1/8
Secondary Workpiece Material
Steel
Single Or Double End
Single
Variable Index
No
Secondary Workpiece Material Code
P
Mill Diameter Tolerance
h6
Overall Length Tolerance
-0.0620/0.0620 in
TIR Maximum (Decimal Inch)
0.0003
Shank Diameter Tolerance
h6
Corner Radius Tolerance
-0.0020 to 0.0020 in
Proprietary Coating Designation
Proprietary
Product Overview
Corner Radius End Mill: 1/8" Dia, 1/4" LOC, 0.0150" Radius, 3 Flute, Solid Carbide 1-1/2" OAL, 1/8" Shank Dia, 35 deg Helix, Zplus Coated, Single End, Centercutting, Series H35AL-3
