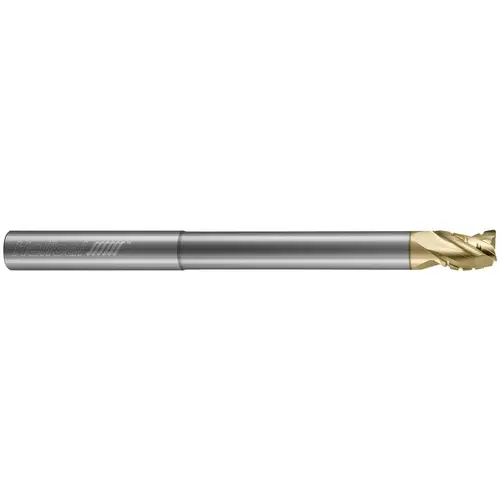

Helical Solutions 82808 Corner Radius End Mill: 1/8" Dia, 5/32" LOC, 0.0150" Radius, 3 Flute, Solid Carbide Zplus

Item #: 82808 by Helical Solutions

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$88.38

/each
SAVE UP TO 8.84
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight-Cylindrical

Shank Diameter (Inch)

1/8

Variable Helix

No

Vendor Drop Ship

N

Length Of Cut (Decimal Inch - 4 Decimals)

0.1562

Overall Length (Inch)

3

TIR Maximum (Decimal Inch)

0.0003

Secondary Workpiece Material

Steel

For Use With

High Precision Toolholders

Mill Diameter (Inch)

1/8

Overall Length Tolerance

-0.0620/0.0620 in

Material Removal Type

Roughing & Finishing

Coating/Finish

Zplus

UNSPSC Code

27112803

Proprietary Coating Designation

Proprietary

Neck Diameter (Decimal Inch)

0.1180

Number of Flutes

3

Corner Radius Tolerance

-0.0020 to 0.0020 in

Length of Cut (Inch)

5/32

Chipbreaker

No

Secondary Workpiece Material Code

P

Mill Diameter (Decimal Inch)

0.1250

Primary Workpiece Material

Non-Ferrous Metal

End Type

Corner Radius

Corner Radius (Decimal Inch)

0.0150

Flute Type

Spiral

Length Type

Long

Extended Reach

Yes

Helix Style

High

Overall Length (Decimal Inch)

3.0000

Coolant Through

No

Mill Diameter Tolerance

h6

End Mill Material

Solid Carbide

Coating Classification

PVD

Reach Length (Inch)

1

Flute Direction

Right Hand

Centercutting

Yes

Cutting Direction

Right Hand

Material Application

Aluminum

Reach Length (Decimal Inch)

1.0000

Shank Diameter (Decimal Inch)

0.1250

Pitch

Variable

Shank Diameter Tolerance

h6

Series

H40ALV-RN-3

Single Or Double End

Single

Variable Index

Yes

Primary Workpiece Material Code

N

Product Overview
Corner Radius End Mill: 1/8" Dia, 5/32" LOC, 0.0150" Radius, 3 Flute, Solid Carbide 3" OAL, 1/8" Shank Dia, 40 deg Helix, Zplus Coated, Single End, Centercutting, Series H40ALV-RN-3
