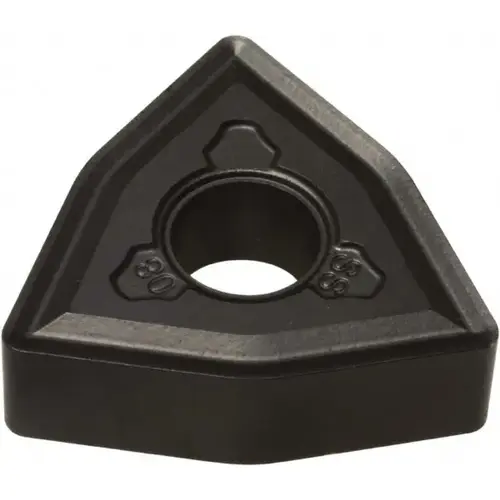

Hertel 1002283 Turning Insert: WNMG 332-AS HC1250T, Solid Carbide

Item #: 1002283 by Hertel

See reviewsSee reviews
See reviews summary
In Stock

$25.88

/each
SAVE UP TO 2.59
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 259 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Included Angle

80.0

Cutting Direction

Neutral

Insert Material

Solid Carbide

Coating Process

CVD

Corner Radius (Decimal Inch)

0.0315

Manufacturers Catalog Number

WNMG332

Material Grade

HC1250T

Primary Workpiece Material

M

Vendor Drop Ship

N

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.3750

Insert Thickness (Decimal Inch)

0.1874

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.1181

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.3750

Insert Length (mm)

9.53

Corner Radius (Inch)

1/32

Insert Shape

Trigon

Clearance Code

N

Rake Angle

10

Insert Shape Code

W

Chip Breaker

G

Insert Style

WNMG

Insert Size Code

332

Tolerance Code

M

Hole Diameter (Decimal Inch)

0.1500

Relief Angle

0

Inscribed Circle (Inch)

3/8

Hole Diameter (Mm) ( - 0 Decimals)

3.81

Maximum Depth of Cut (mm)

3.00

Manufacturer Grade

HC1250T

Single or Multi Tipped

Multi Tipped

Length Range (Decimal Inch)

0.3000 - 0.4000

Iso Code

WNMG 060408-AS

Product Overview
Turning Insert: WNMG 332-AS HC1250T, Solid Carbide Neutral, 9.53 mm Long, 3/8" Inscribed Circle, 1/32" Corner Radius, 80 degree Trigon
