Features
Product Type
Electric Strike
Series
1500C Series
Voltage
12/24VAC/DC
Mounting Type
Surface Mount
For Use With
All Brands of Cylindrical and Mortise Locksets Without a Deadbolt
Application
Metal and Wood Frame
Warranty
SecuriCare 5 Year
Color Code
BSP
Function
Electric Strike
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Current Draw
240mA; 120mA
Finish Description
Black
Product Height
1-3/8 Inch
Product Length
4-7/8 Inch
ADA Compliant
No
Finish Family
Black
Included Components
1LB Faceplate Kit
Product Material
Stainless steel
Standards
ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed; RoHS Compliant; UL10C Listed; CAN/ULC-S104 Fire Door Conformant; NFPA-252 Fire Door Compliant; ASTM-E152 Fire Door Compliant; California Fire Marshal Listed; ANSI/SDI A250.13; ANSI-ASTM E330
Faceplate Dimension
4-7/8" x 1-1/4"
Function Family
Electric Strike
Features
Tamper Resistant; Endurance 1 Million Cycles; Non-Handed; Field Adjustable Integrated Shim; Windstorm Resistant; Outdoor Rated; Burglary Rated; POE Friendly
Manufacturer Parent
Assa Abloy
Sub-Series
EAC_Electric_Strike_hes_1
Alternate Part Number-1
176963
Finish
Black Suede Powder Coat
Use With
Cylindrical and Mortise Locksets
UL Listing Type
UL 1034, UL294, UL10C
Dimension
4-7/8" x 2-1/16" x 1-1/8"
Strike Dimension
1-1/4" x 4-7/8"
No of inners
1
Fire Rated
Yes
Power Supply
Wired
Operating Voltage
Dual Voltage 12/24 VDC
Strike
Electric Strike
Finish code
BSP
Material
Stainless Steel
Manufacturer Warranty
1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
Hazardous Material
No
Grade
Grade 1
Faceplate
4-7/8"
Model
1500C - Complete Electric Strike Pac
Door Type
Metal, Wood
Electronic
Yes
Holding Force
1500
Substrate Type
Stainless Steel
Product Depth
1-5/8"
Product Width
1-3/4"
Dynamic Strength
70 ft-lbs
Lock Type
Mortise or Cylindrical
Preload Capable
No
Fail Safe / Fail Secure
Field Selectable
Endurance Cycles
1,000,000
Door Strike
1-3/8"
Latch Specification
Locksets With or Without a Deadbolt
Outdoor Rated
Yes
Windstorm Rated
Yes
Product Overview

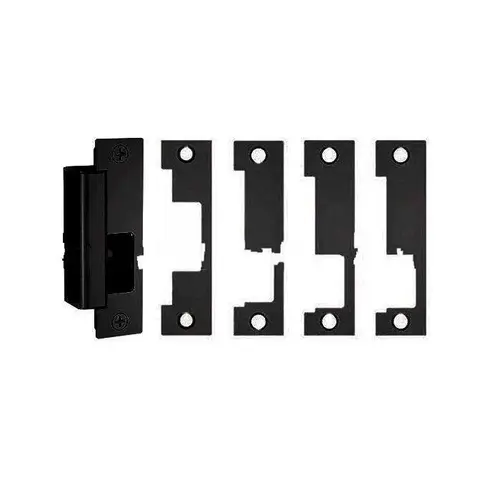

1500 SeriesElectric Strike
Works with all brands of cylindrical and mortise locksets without a deadbolt
The most advanced, modular electric strike that works with every brand of cylindrical or mortise locks designed to work with a 4-7/8" strike plate.
The HES 1500 Series Electric Strike sets a new standard in the industry by offering dynamic integrated adjustability and field configurable options compatible with any cylindrical or mortise lock. The modular design of the platform makes stocking and installing easier with interchangeable faceplates and accessories. For the first time, the aesthetics of an electric strike are complementary to other surrounding door hardware and blend in with the opening due to the fully finished design, available in seven finishes.
Standard Features:- Stainless steel construction
- Tamper resistant
- Static strength 1,500 lbs
- Dynamic strength 70 ft-lbs
- Endurance 1 million cycles
- Field selectable fail safe/fail secure
- Non-handed
- Interchangeable faceplates and accessories
- Field replaceable components
- Fully finished faceplate, keeper, case and trim
- Field adjustable integrated shim
- Strike body depth 1-3/8" [34.9mm]
- SecuriCare ten-year, no-fault, no questions asked warranty
- ANSI/BHMA A156.31, Grade 1
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 listed
- RoHS compliant
- UL 10C fire rated, 3-hour single door (fail secure only)
- UL 10C fire rated, 1-1/2 hour double door (fail secure only)
- CAN/ULC-S104 fire door conformant
- NFPA-252 fire door compliant
- ASTM-E152 fire door compliant
- California Fire Marshal listed
- ANSI/SDI A250.13 windstorm resistant
- Florida Building Code approved TAS 201, 202, 203
- ANSI-ASTM E330
- Sustainability documentation
- Metal
- Wood
- Dual voltage 12/24 VDC/VAC
- 240 mA at 12 VDC/120 mA at 24 VDC
- PoE friendly
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613E - Dark oxidized satin bronze
- 629 - Bright stainless steel
- BSP - Black suede
