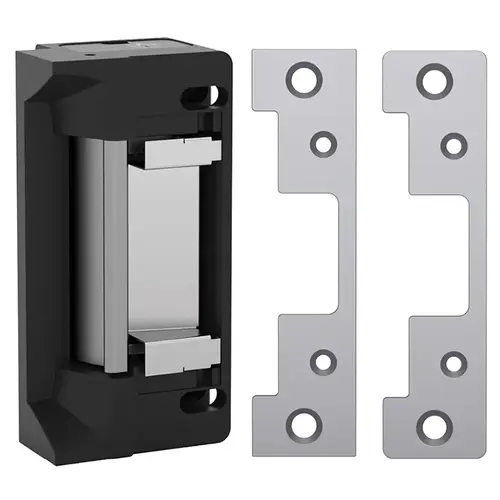

HES 5200C-630-LBM 12VDC / 24VDC Electric Strike with 501 and 501A Faceplate and Latchbolt Monitor Satin Stainless Steel Finish
Item #: 5200C-630-LBM by HES
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Voltage
12/24VAC/DC
Finish
Satin Stainless Steel
For Use With
Works With Cylindrical Locksets Up to a 3/4" Throw Latch bolt
Application
Metal and Wood Frame
Warranty
SecuriCare 5 Year
Color Code
630/US32D
Function
Electric Strike
Strength
1500 (Static); 70 (Dynamic) lb; ft-lb
Finish Description
Satin Stainless Steel
Electric Options
LBM-Latchbolt Monitor
Product Height
1-3/16 Inch
Product Length
4-7/8 Inch
Product Width
1-1/4 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Included Components
Trim Enhancer; 501 and 501A Faceplates
Product Material
Stainless steel
Cycles
1 Million Cycles
Duty
Fail Safe/Fail Secure
Standards
ANSI/BHMA A156.31, Grade 1; UL 1034 Listed; UL 294 Listed; RoHS Compliant
Faceplate Dimension
4-7/8" x 1-1/4"
Function Family
Electric Strike
Strike Lip
1-3/16 Inch
Dynamic Strength
70 Foot-Lbs.
Features
Tamper Resistant; Endurance 1 Million Cycles; In-Frame Horizontal Adjustment; Non-Handed; Internally Mounted Solenoid; Plug-in Connector; Burglary Rated; POE Friendly
Product Type
Electric Strike
Series
5200C Series
Latch Throw
3/4 Inch
Lip Extension
1-1/16 Inch
Manufacturer Parent
Assa Abloy
Sub-Series
5200C-630-LBM
Fire Rated
No
Origin
USA
BAA Qualified
Yes
Package Height
2.25
Package Length
10.5
Package Volume
79.734375
Package Width
3.375
Color
Satin Stainless Steel
Finish code
630
Product Overview
Grade 1 Electric Strike, Fail Safe/Fail Secure, 12/24 VDC, Latchbolt Monitor, Satin Stainless Steel
The 5200C has in-frame horizontal adjustability for easy installation. The 5200C works with cylindrical locksets up to a 3/4" throw latchbolt and includes in-frame adjustability and dual voltage. Each Complete Pac conveniently pairs the reliability of HES electric strike with the flexibility of multiple faceplates in a single simple package. The 5200C includes a 5200 strike body, the 501 faceplate for cylindrical locksets in ANSI metal jambs and the 501A faceplate for cylindrical locksets or spring latches in aluminum frames.
The 5200 series electric strike features an in-frame horizontal adjustable design to simplify the installation process.
This features allows the installer to easily adjust the electric strike opening to accommodate the horizontal position of the latchbolt after the strike has been installed. This field selectable fail secure/fail safe unit is easy to install and accommodates latchbolts up to a 3/4" throw. The 5200 is also available in a Complete Pac which pairs the strike body with the faceplates and mounting hardware all in one simple convenient package.
Frame application
- Metal
- Wood
Electrical
- .24 Amps at 12 VDC/VAC
- .12 Amps at 24 VDC/VAC
- DC continuous duty/AC intermittent duty only
Standard Features
- Tamper resistant
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance 500,000 cycles
- Field selectable fail secure/ fail safe
- Dual voltage 12 or 24 VDC/VAC
- Non-handed
- Internally mounted solenoid
- Accommodates 5/8" - 3/4" latchbolt (3/4" with 1/8" door gap)
- Strike body depth 1-1/16"
- Plug-in connector
- Trim enhancer included
- Five year limited warranty
Optional Features
- LBM - Latchbolt monitor
- LBSM - Latchbolt strike monitor
Finishes
- 630 - Satin stainless steel
- 605 - Bright brass
- 606 - Satin brass
- 612 - Satin bronze
- 613 - Bronze toned
- 629 - Bright stainless steel
- BLK - Black
- *Complete Pacs are only available in the 630 finish
