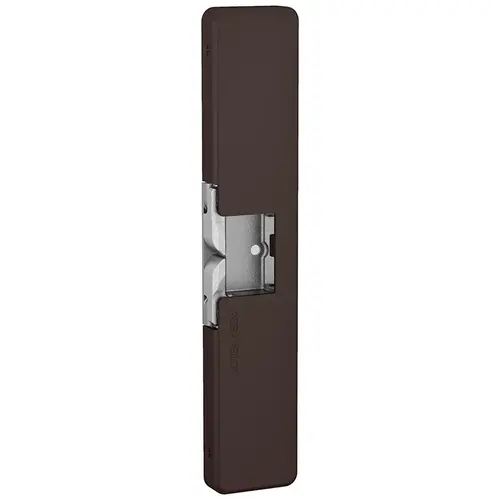

HES 9400-613E-LBMClick To Copy Slim Line Electric Strike 12/24VDC, FS/FSE, Rim Exits Max 1/2" Throw, 9" x 1-3/4" x 9/16", LBM Latchbolt Monitor, Wood or Metal Frame, 613E/US10BE Dark Oxidized Satin Bronze

Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 1/2" Thickness, Latchbolt Monitor, Dark Oxidized Bronze Finish

The HES 9400 series is a slim-line, outdoor rated surface strike designed to accommodate rim exit devices with a 1/2" Pullman latch.

All components are completely encased within its 5/8" thick stainless steel housing. No cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.

The HES 9400 ships with a 1/8" spacer plate to accommodate varying door gaps. The HES 9400 exceeds Grade 1 standards for strength and performance. It is field selectable for fail secure/fail safe operation, and for 12 or 24VDC. The HES 9400 features a smooth cover to conceal the mounting screws and provide a sleek surface for superior looks.

Frame application

• Metal
• Wood

Electrical

• .45 Amps at 12VDC continuous duty
• .25 Amps at 24VDC continuous duty

Standard Features:

• Installs in metal and wood frames
• Completely surface mounted
• Decorative cover for sleek new look
• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• 1/8" + 1/16" spacer plate included
• Field selectable fail safe/fail secure
• Dual voltage 12 or 24 VDC
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1/2" Pullman latch
• Five year limited warranty

Optional Features:

• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 613E - Dark oxidized satin bronze
• 629 - Bright stainless steel
