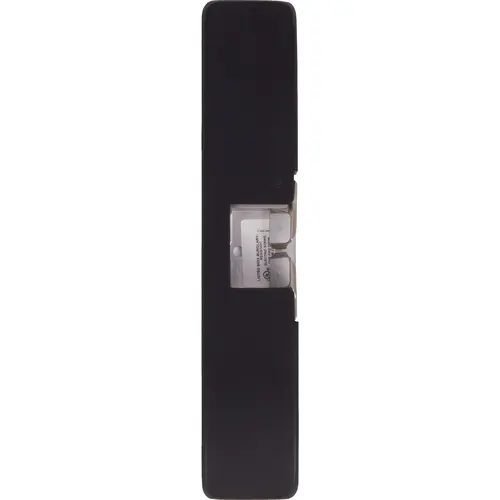

HES 9500-BSP 12VDC / 24VDC Electric Strike Body Black Suede Powder Coat Finish
Item #: 9500-BSP by HES
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- UL 10C fire-rated, 3 hour (fail secure)
- CAN4-S104 (ULC-S104) fire door conformant
- WHI fire door listed
- UL 1034 burglary-resistant listed and suitable for outdoor use
- UL 294 (6th Edition) Listed
- ANSI/BHMA A156.31, Grade 1 (#E09371, #E09372, #E09373)
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- California Fire Marshall listed
- NFPA 80-07 compliant
- RoHS compliant
- Patent #6,390,520
- Patent pending
Package Width
3.375
Package Volume
79.734375
Package Length
10.5
Package Height
2.25
BAA Qualified
Yes
Origin
USA
Fire Rated
3 Hours {A}
Color Code
BSP
Color
Black Suede Powder Coat
Alternate Part Number-1
182088
Finish
Black
Item Weight
4 lbs
Use With
Rim Exit Devices
UL Listing Type
UL 1034, UL294, UL305
Dimension
9" x 3/4" x 1-3/4"
Strike Dimension
1-3/4" x 9"
No of inners
1
Power Supply
Wired
Operating Voltage
Dual Voltage 12/24 VDC
Strike
12VDC / 24VDC New Style Electric Strike Body
Finish code
BSP
Material
Stainless Steel
Series
9500 Series
Manufacturer Warranty
1 Year Hassle Free Guarantee, 5 Year Limited Mechanical Warranty, and 1 Year Limited Electrical Warranty
Hazardous Material
No
Product Overview
Fail Safe/Fail Secure, Complete 12/24VDC Electric Strike, Surface Mounted, 3/4" Thickness, Fire Rated, Black Suede Powder Coat Finish
The 9500 Series is a 3 hour fire rated, surface mounted electric strike designed to accommodate rim exit devices with a 3/4" Pullman latch. All components are completely encased within its 3/4" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install. Adjustments have never been easier as the base is now separate from the cover. The 9500 exceeds grade-1 standards for strength and performance. It is field selectable for fail secure and fail safe operation, and for 12 or 24VDC. This unique electric strike complies with NFPA 80-07 guidelines for retrofit into fire-rated frames.
The 9500 Series is fire rated for 3 hours and designed to accommodate rim exit devices with a 3/4" Pullman latch.
All components of the 9500 Series are completely encased within its 3/4" thick stainless steel housing, so not cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt and install.
