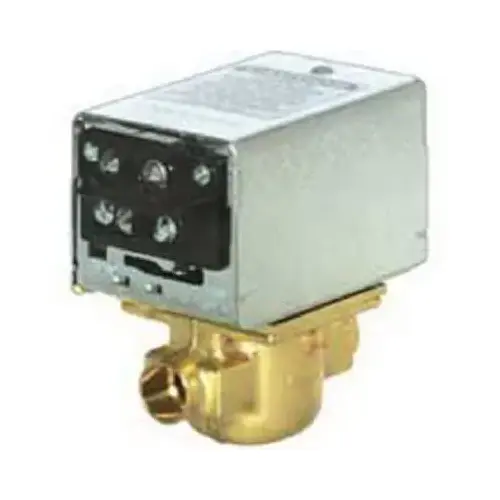

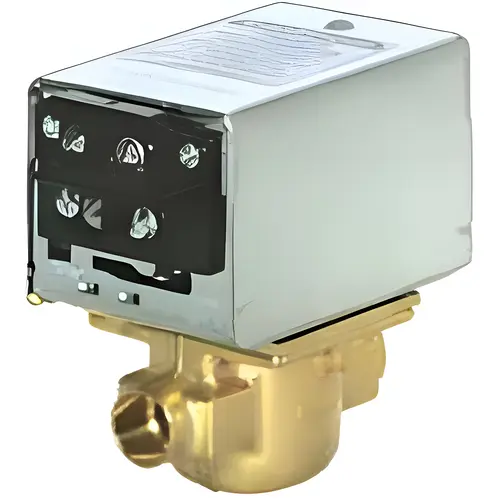

Honeywell Hydronic Zone Valve, 24 Volt, 3/4" Sweat Connections Manual Lever
Item #: V8043F1036 by Honeywell International, Inc
Brand: Honeywell
UPC #: 85267000765
See reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features
- For controlling hot/cold water
- Motorized electronic valve
Color
Stainless
HVAC Product Type
Underfloor Heating Controller
Connection Size
0.75 in.
Product Width (in.)
4.9
Brand/Model Compatibility
Universal
Voltage
24
Product Height (in.)
5.6
Pack Size
1
Type of Zone Actuator
Normally Closed
Product Depth (in.)
3.2
Zone Valve Configuration
2-Way
Warranty
Limited Warranty
Manufacturer Warranty
Limited Warranty
Position
Normally Closed
Returnable
Yes
Defective Code
A
Maximum Working Temperature
200 °F
Maximum Temperature
200 °F
Maximum Pressure
20 psi
Connection Type
Sweat
Inlet Size
0.8"
Length
1.23
Product Type
Zone Valve
Material
Stainless Steel
Minimum Working Temperature
50 °F
Outlet Size
0.8"
Each Weight
2.200 LB
Velocity
X
Hazardous Material
No
UNSPSC
40141616
Height
0.85
Width
1.00
ECCN
EAR99
Country Origin Code
US
MADE IN THE USA
No
Package Quantity
1
UL Listed
Yes
AbilityOne
No
ADA Compliant
No
GSA Approved
No
TAA/BAA Compliant
Yes
Model No.
V8043F1036
Weight
3.00
Volts
24V
Collection
V8043F
Lenght
2-5/13 in
Origin
Global
Valve Body Style
2-way
Valve material
Brass
Valve Type
Hydronic Zone Valve
ANSI Standard
UL Recognized: File MH11826
CSA Certified
UL Recognized: File MH11826
Minimum Temperature
50
Width
3-9/13 in
Valve Size
3/4 in
IAPMO Listed
Yes
FM Approved
Yes
Valve Body Material
Brass
End Connection 1
Sweat
End Connection 2
Sweat
Pressure - Maximum
125 psi
Recommended Valve Application
Water, Steam
Valve Seat Material
Brass
Product Overview
Zone valve for use in closed loop hydronic systems that do not contain dissolved oxygen in system water, such as fresh water from frequent source of makeup water. For cycling and not constantly powered on applications. 2-way on/off low voltage valve consistent of an actuator and valve assembly for controlling the flow of hot water. 24V 3/4 inch sweat connection low voltage motorized zone valve with 3.5 Cv capacity. Manual opener for valve operation on power failure, valve returns to automatic position when power is restored. Can be installed without disassembling the valve.
