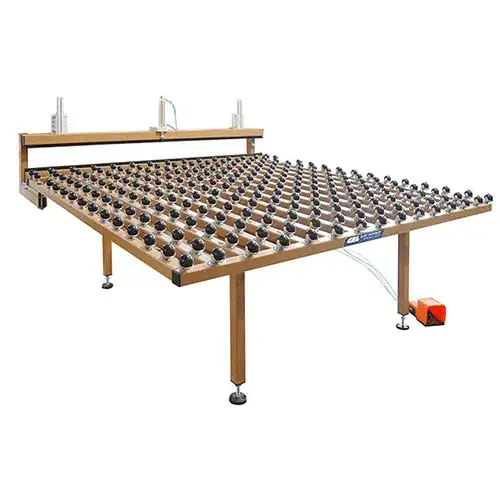

The CRL HMCST2 Hot Melt Clamp Table has heavy-duty tubular steel construction. The HMCST2 consists of a CRL 84" x 84" (2.13 x 2.13 m) Ball Caster Table and a pair of air actuated padded clamp rails. The table's 2" (51 mm) diameter ball casters are spaced 6" (152 mm) apart. A foot actuated clamping system frees the operators' hands for positioning of the IG package while holding an edge sealant gun. To use, the operator positions an IG package (glass and spacer) on top of the table with one edge beneath the padded clamping rails. The foot pedal is then depressed to actuate the clamping mechanism, moving both the upper and lower clamping rails position, securing the glass and spacer along one edge for sealant application. The foot pedal is then used to release the clamping unit, and the IG package is rotated and re-clamped to complete the seal on each side. You can also shift and re-clamp IG package sides longer than 84" (2.13 m) to complete their seal. The HMCST2 requires a compressed air supply capable of delivering 1 cfm @ 50psi (0.02cm@ 3.4atm). It ships KD to reduce freight expense, therefore some assembly required.
Product Warning:
Always wear the proper protective safety gear when handling glass. Failure to do so can result in injury.
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
CRL HMCST2 Hot Melt Clamp Table
Item #: HMCST2 by CR Laurence
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Aids in the Assembly of Insulating Glass Units
- Clamps IG Units and Stacks Up To 4" (102 mm) Thick
- Made in the USA by CRL Glass Machinery
F.O.B
CRL Factory in Cicero, Illinois
Width
84
Length
84
Product Overview
The CRL HMCST2 Hot Melt Clamp Table has heavy-duty tubular steel construction. The HMCST2 consists of a CRL 84" x 84" (2.13 x 2.13 m) Ball Caster Table and a pair of air actuated padded clamp rails. The table's 2" (51 mm) diameter ball casters are spaced 6" (152 mm) apart. A foot actuated clamping system frees the operators' hands for positioning of the IG package while holding an edge sealant gun. To use, the operator positions an IG package (glass and spacer) on top of the table with one edge beneath the padded clamping rails. The foot pedal is then depressed to actuate the clamping mechanism, moving both the upper and lower clamping rails position, securing the glass and spacer along one edge for sealant application. The foot pedal is then used to release the clamping unit, and the IG package is rotated and re-clamped to complete the seal on each side. You can also shift and re-clamp IG package sides longer than 84" (2.13 m) to complete their seal. The HMCST2 requires a compressed air supply capable of delivering 1 cfm @ 50psi (0.02cm@ 3.4atm). It ships KD to reduce freight expense, therefore some assembly required.
Product Warning:
Always wear the proper protective safety gear when handling glass. Failure to do so can result in injury.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
