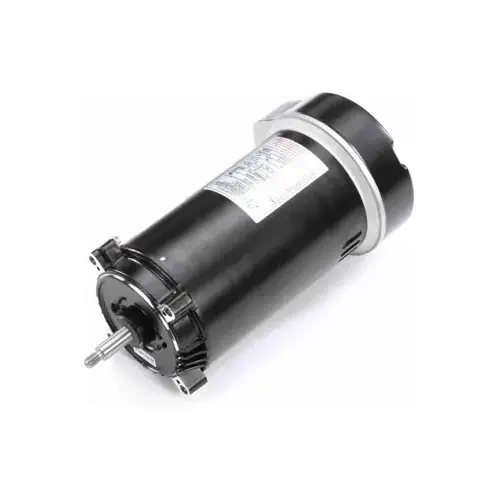

Century(R) Centurion(R) Pro HST150 Pool and Spa Pump Motor; 1.5 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers
REGAL BELOIT HST150 1.5thp 115/230 17.2/8.6a 56j C-face Motor Satin Black
Item #: HST150 by Regal Beloit America Inc
UPC #: 786674033345
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Professional grade
- Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
- PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
- Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
- Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
- 203 Bearings both ends
MotorShaftRotation
CCWPE
ServiceFactor
1.00
MotorDesign
Capacitor Start
NumberofSpeed
1-Speed
MotorThermalProtection
Auto
DutyCycle
Continuous
ShaftDiameter
5/8 Inch
ShaftMaterial
303 Stainless Steel
ShaftLength
2-9/16 Inch
InsulationClass
B
ShaftDesign
Threaded
ThrustHorsepower
1.5
EnclosureDesign
Open Dripproof
VoltageRating
115/230 V
SubBrand
Century®
StandardsApprovals
UL Approved, UL Recognized (E46412), CSA Certified (LR43341)
MountingType
C-Face
Item
Pool and Spa Pump Motor
HP
1.5
FullLoadAmps
17.2/8.6 A
FrequencyRating
60 Hz
FinishColor
Satin Black
AmbientTemperature
50 deg C
Bearing Type
Sealed Ball
Department
PUMPS
Phase
1-Phase
OverallLength
11.84 Inch
Shipping Dimensions
16.75x9.25x9.25
Type
C
Frame
56J
RPM
3450
Diameter
6-1/2 Inch
Motor Thermal Protection
Automatic Reset
Standards Approvals
CSA Certified
Amps High Speed
17.2
Motor Shaft Rotation
Counterclockwise Pulley End
Frequency Rating (Hz)
60
Minimum Sell Quantity
1
Amps Low Speed
8.6
RPMs Max
3450
Shaft Design
7/16 Threaded
Motor Capacitor Type
Start
RPMs Min
3450
Each Product Weight
26.15 pound
Motor Frame Size
56J
Service Factor
1
Insulation Class
F
Ambient temperature
50 degrees Celsius
Shaft Material
303 Stainless Steel
Motor Speed
1-Speed
Flange Type
Round
P65 Warning
The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov
Motor Enclosure Type
Open Drip Proof
Bearing Type
Sealed Ball
Shaft Length
2.5625 inch
Color
Black
Horsepower
1.5 horse power
Shaft Diameter
0.625 inch
Voltage
115V,230V
Product Overview
Century(R) Centurion(R) Pro HST150 Pool and Spa Pump Motor; 1.5 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
