Altronix HUBWAY16CDClick To Copy Passive UTP Transceiver Hub with Integral Camera Power, 115VAC 60Hz at 3A Input, 16 PTC Protected Class 2 Power-Limited Outputs 24/28VAC up to 1A each, Video Outputs at 75 ohm up to 750 Ft.

Passive UTP Transceiver Hub with Integral Camera Power, 115VAC 60Hz at 3A Input, 16 PTC Protected Class 2 Power-Limited Outputs 24/28VAC up to 1A each, Video Outputs at 75 ohm up to 750 Ft.

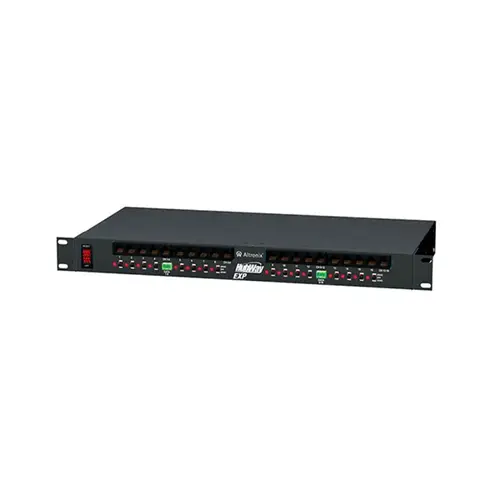

HubWay16CD Passive UTP Transceiver Hub with Integral Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 16 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/Combiners. In addition, the unit features individually selectable 24VAC or 28VAC PTC protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay16CD. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs. This model replaces HubWay162CD, HubWay163CD

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

• General Use
• CCTV
• Fire Alarm
• POIP
