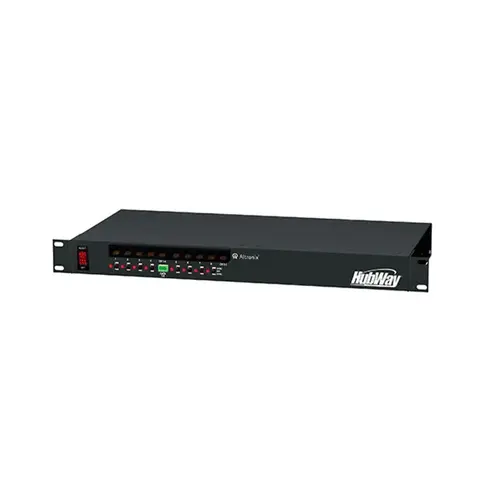

Altronix HUBWAY8DI Passive UTP Transceiver Hub with Integral Isolated Camera Power, 115VAC 60Hz at 2.5A Input, or 230VAC 50Hz at 1.5A, 8 PTC Isolated Class 2 Power-Limited Outputs 24/28VAC up to 1A each, Video Outputs at 75 ohm up to 750 Ft.

Item #: HUBWAY8DI by Altronix

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$999.04

/each
SAVE UP TO 99.90
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Type

Wire-In Transformer

Output Amps

1 AMPS

Output Volts

24/28VAC

Product Overview

Passive UTP Transceiver Hub with Integral Isolated Camera Power, 115VAC 60Hz at 2.5A Input, or 230VAC 50Hz at 1.5A, 8 PTC Isolated Class 2 Power-Limited Outputs 24/28VAC up to 1A each, Video Outputs at 75 ohm up to 750 Ft.

HubWay8Di Passive UTP Transceiver Hub with Integral Isolated Camera Power transmits UTP video, RS422/RS485 data and power over a single CAT-5 or higher structured cable. Unit provides 8 camera channels in a space saving 1U EIA 19" rack mount chassis which may be rack, wall or shelf mounted. Video transmission range is up to 750 ft. max. per channel. Units are compatible with AC and/or DC fixed or PTZ cameras when utilizing Altronix HubWayAv, HubWayAv2, HubWayDv or HubWayDvi Video Balun/ Combiners. In addition, the unit features individually selectable 24VAC or 28VAC fuse protected outputs with surge suppression. An optional HubSat4D Passive UTP Transceiver Hub with Integral Isolated Camera Power can be used as an accessory module to transmit video from up to 4 cameras over a single CAT-5 or higher structured cable back to the HubWay8Di. In addition, the HubSat4D provides power to these cameras locally to eliminate the possibility of voltage drop associated with long cable runs. This model replaces HubWay82Di, HubWay83Di

Ideal for a multitude of purposes, including CCTV, Fire Alarm and POIP.

A leading global provider of power and transmission technologies for professional security system applications, Altronix develops innovative solutions that integrate disparate infrastructure and maximize overall performance and efficiency.

Altronix Power Supplies are ideal for a multitude of purposes, including:

  • General Use
  • CCTV
  • Fire Alarm
  • POIP
