Hvac Controls

A furnace that won't light, a condenser that hums and never starts, a zone that stays cold: the fix is usually one of the HVAC controls on this page. DK Hardware stocks direct-replacement boards, contactors, ignition modules, zone valves, transformers and timers from Emerson White-Rodgers, Packard, Goodman, Carrier, Lennox, Honeywell Home, Eaton, Supco, ICM and Taco. The fastest way to the right part is the number printed on the old one. Read it off the board or the label, match it to a listing below, and get the unit back online.

Which HVAC Controls Run Which Part of the System?

Each control family handles one job. Find the job that failed, then shop the family that runs it.

Pressure switches for draft inducers, Hall effect sensors and defrost boards sit in the main HVAC controls listing too, so search by part number if the family isn't obvious.

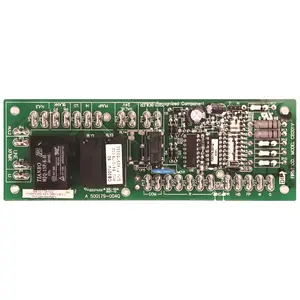

How Do You Match a Replacement HVAC Control Board?

Start with the OEM part number on the board, then confirm four things: ignition type, number of stages, blower type and any extra functions the old board handled. A board that matches all four drops in on the original harness.

Before you order an HVAC control board, check these:

• Ignition type. Hot surface, direct spark and intermittent pilot controls don't interchange unless the listing says so.
• Stages. A single-stage board won't run a two-stage burner or compressor.
• Blower motor. A variable-speed or ECM blower needs a board listed for it.
• Superseded numbers. OEMs renumber boards often. Send us the old number and we'll find the current replacement.

What to Check Before You Swap Contactors, Relays and Timers?

A pitted contactor is the most common no-cool call there is, and the replacement takes five minutes if the specs match. Read three numbers off the old one.

Packard contactors like the C240A, a 2-pole, 40-amp contactor with a 24V coil, meet UL 508 for devices up to 600 VAC and ship with lugs, spade terminals and covers. Single-pole models include a shunt. For three-phase commercial units, the Eaton C25DNF340B is a 3-pole, 40-amp contactor with a 240V coil.

While you're in the panel, check what feeds and protects it:

• Transformers. The Supco SXT105 is a 40 VA, 120/208/240V foot-mount transformer. The Carrier HT01BD242 steps 240 or 480V down to 24V at 75 VA.
• Timers. The ICM ICM203 delay-on-break timer covers 18 to 240 VAC with a .03 to 10 minute adjustable delay. The Supco TD69 adds a delay on make.
• Capacitors. A weak run capacitor kills contactors and compressors alike. Grab one from motor capacitors in the same order.

Understanding Commercial HVAC Control Systems: Rooftops, Three-Phase and Hydronic Zones

Commercial HVAC control systems use the same part families as residential, at higher ratings and with more protection. Facility teams keep three things on the shelf.

• Rooftop and package unit ignition. The Emerson 50N02B-820 is rated for commercial rooftop and package units with two-stage direct spark burners.
• Phase protection. The Carrier HK35AC002 relay phase monitor shuts the compressor down on lost or reversed phase before it destroys itself.
• HVAC control valves for hydronic heat. The Honeywell V8043E1012 is a 24V zone valve with 3/4-inch connections and an end switch. The Taco ZVC406-4 control panel runs up to six zone valves from individual thermostats.

Whatever HVAC controller sits at the top, whether it's a wall thermostat or a building automation panel, the command still ends at a contactor, a relay or a valve. Those field devices wear out, and they're what we keep in stock.

Keeping Pneumatic HVAC Controls Running, or Converting Them

Pneumatic HVAC controls still run plenty of schools, hospitals and office buildings built before the 1990s. When a building moves to HVAC automation controls, the new digital controllers send 24V signals, so the electrical side of the job needs the same parts as any service call:

• 24V control transformers sized to the added load
• Zone valves and valve heads to replace air-operated valves
• Contactors and relays for the equipment the new controller switches

Running down a part number that's been out of production for years? Send it through a custom quote and we'll source the current equivalent.

Pricing for Service Fleets, Facility Teams and Homeowners

• One at a time. Most controls sell individually, so you can replace one contactor without buying a box.
• Van stock and multi-unit jobs. Request volume pricing on repeat parts like contactors, capacitors and timers.
• Contractor accounts. DK Net Terms handles Net 30 and tax-exempt purchasing.
• Price and shipping. Our lowest price guarantee covers every listing, and orders ship from US warehouses. Check each listing for the ship estimate.
• Homeowners. Got the old part in your hand? Call 877-509-8040 or start a live chat and we'll confirm the match before you order.

HVAC Controls Questions, Answered

What Are HVAC Control Systems?

HVAC control systems are the parts that sense conditions, decide what to do and switch the equipment. That means the thermostat or controller, plus the boards, relays, contactors and valves that carry out its commands. Every replaceable piece below the controller is on this page.

What Is an HVAC Control Panel?

It's the box that houses the transformer, relays, contactors, terminal strips and control board. On residential equipment it's the control box inside the furnace or condenser cabinet. Replace the failed component, not the whole panel.

What Is HVAC Zone Control?

Zone control splits a system into areas that call for heat or cooling independently. On hydronic systems, a zone panel like the Taco ZVC406-4 opens a motorized zone valve for each thermostat that calls.

What Are DDC Controls in HVAC?

Direct digital control uses a programmable HVAC controller to read sensors and drive equipment. DDC systems still depend on 24V transformers, relays, contactors and zone valves to do the physical switching, and those parts are in stock here.

Can I Use a Universal Board Instead of the OEM Part?

Yes, when the universal board is listed for your ignition type, stage count and blower. Direct-replacement boards like the Emerson 50A55-743 for Goodman match the original harness, so they're the faster swap.

Get the Unit Back Online Today

Pull the number off the failed board, contactor or switch, then find it in the families above or search it directly. Pair it with a capacitor or transformer if they're showing their age. For multi-unit work, request volume pricing. For the rest of the system, browse all HVAC parts and supplies.
