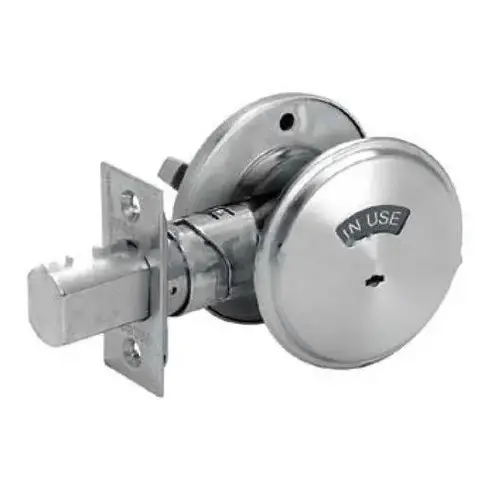

Falcon D271 625Click To Copy Indicator Deadbolt Bright Chrome

D200 SeriesGrade 2, medium-duty deadbolts

Falcon D200 grade 2 deadbolts are built with many of the same features as the grade 1 offering including an adjustable backset with a lock-in-place design, a removeable anti-pry shield, and tapered free-spinning trim ring to resist wrenching. The bolt is made of solid zinc with an anti-saw hardened steel pin insert. Like other Falcon locks, they offer the versatility of numerous Best and Arrow equivalent open keyways in SFIC cylinders as well as Falcon and Schlage keyways in Conventional cylinder formats. Count on D200 deadlocks to deliver value and flexibility when and where you need it.

Features:

• ADA compliant thumbturn

• Latch tube construction

• Integrated anti-pry shield behind cylinder assembly for added security and quicker installation

• Integrated trim design – fewer pieces out of the box and improved installation time

• Tapered front resists wrenching

• Accepts small format interchangable style cores (SFIC) and conventional cylinders

• Adjustable backset with lock-in-place design for greater versatility

• Heavy duty* saw-resistant bolt with spinning hardened steel pin inside for additional protection
• *Grade 1 - High strength steel - powdered
• Grade 2 - Zinc

Product specifications: ANSI/BHMA:

• A156.5, 2001, Grade 2.

Functions:

• 8 commercial functions available.

Finishes:

• Available in BHMA 605, 606, 613, 625, and 626.

Door thickness:

• 1 3/8" to 2 1/4" standard conventional cylinder. 1 5/8" to 2" SFIC cylinder.

Backsets:

• 2 3/8"- 2 3/4" adjustable deadbolt.

Attachment:

• Locks are solidly attached to the door by 1/4" heat-treated steel bolts. These bolts pass through a steel plate (D211, D221 and D241) or the inner cylinder housing (D231) and thread directly into the back of the outer cylinder housing.

Handing:

• Non-handed. May be used in right hand or left hand doors swinging in or out.

Cylinders:

• Conventional cylinder, drilled with 6-pin chambers, pinned in 5 comes standard. Pinning in 6 chambers available (at no cost) when specified. Optional 7-pin conventional and 6- or 7-pin Small Format Interchangeable Core (SFIC) cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.

Keyways:

• "G" keyway standard in conventional cylinders. "A" keyway standard in SFIC cylinders. Additional options: Falcon, Schlage and many Best and Arrow keyways.

Exposed trim:

• Wrought brass or bronze reinforced with steel insert.

Deadbolts:

• Deadbolt locks are furnished with deadbolts which have a full 1" projection. Housed within the deadbolt is a free-turning, 1/4” thick, hardened steel, saw-resistant roller. Furnished standard with 2 3/8"- 2 3/4" adjustable backset and 1 1/8" x 2 1/4" faceplate. Optional 1" x 2 1/4" faceplate. D200 bolt is cast zinc.

Strikes:

• 2 3/4" x 1 1/8" lipless standard. ANSI 4 7/8" x 1 1/4" lipless, 2 1/4" full lip strikes, a 2 3/4" x 1 1/8" T-strike or a security strike are available.

Screws:

• Furnished with wood/machine screws for use on wood or metal doors or frames.
