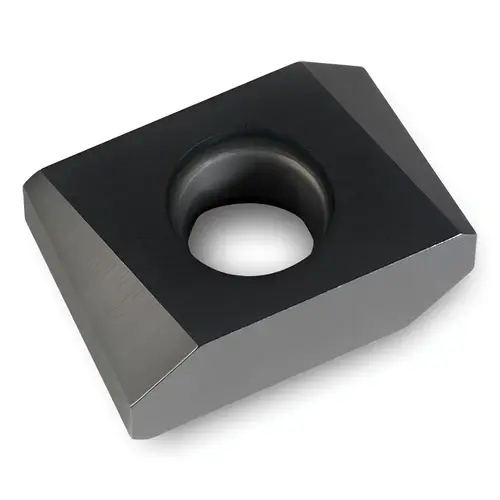

Ingersoll Cutting Tools 2907255 Milling Insert: LSE324R045-S A IN4040 IN4040, Solid Carbide TiAlN
Item #: 2907255 by Ingersoll Cutting Tools
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered
Material Application
Steel
ANSI Code
LSE324R045-S A IN4040
Number of Cutting Edges
4
Standards
ANSI
Insert Material
Solid Carbide
Series
LSE
Coating Process
PVD
Coating/Finish
TiAlN
Length (Decimal Inch - 4 Decimals)
0.6250
Length (Inch)
5/8
Manufacturers Catalog Number
2907255
Material Grade
Fine Grain
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2500
Thickness (Inch)
1/4
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.4100
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.6250
Multi-use Tool
Yes
Rake
Positive
Length of Cut (mm)
15.8800
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.4100
Insert Shape
Rectangle
Chip Breaker
Flat Top
Insert Style
LSE
Insert Size Code
324
Included Angle Degree
90
Manufacturer Grade
IN4040
Inscribed Circle Range (Decimal Inch)
0.4000 to 0.5000
Single or Double Sided Insert
Single
Cutter Series Compatibility
19N1A
Length Range (Decimal Inch)
0.6000 to 0.6500
Thickness Range (Decimal Inch)
0.2500 to 0.3500
Iso Code
LSE324R045-S A IN4040
Product Overview
Milling Insert: LSE324R045-S A IN4040 IN4040, Solid Carbide TiAlN & AlCrO Coated, 1/4" Thick, 0.2500 " Thick, 0.4100" Wide
