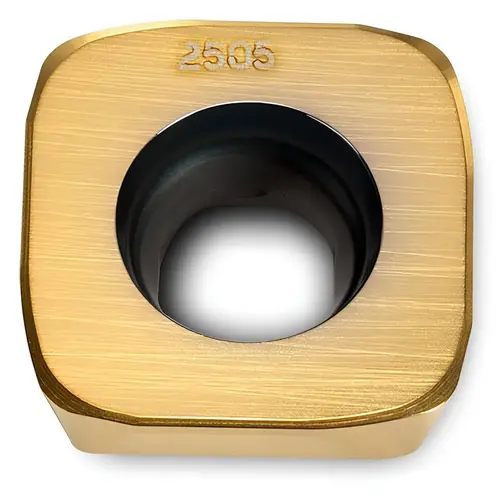

Ingersoll Cutting Tools 2913901 Milling Insert: IN4030, Carbide TiAlN
Item #: 2913901 by Ingersoll Cutting Tools
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Sharp
Material Application
Steel
Length (mm)
13.00
ANSI Code
SDXS1305MPR-MR1 J IN4030
Number of Cutting Edges
4
Standards
ANSI
Insert Material
Solid Carbide
Series
SDXS
Coating Process
PVD
Coating/Finish
TiAlN
Length (Decimal Inch - 4 Decimals)
0.5118
Manufacturers Catalog Number
2913901
Material Grade
Coarse Grain
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.2000
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5118
Width (mm - 2 Decimals)
13.00
Coating Classification
PVD
Insert Holding Method
Screw
Multi-use Tool
No
Rake
Positive
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.5118
Insert Shape
Square
Rake Angle
15
Chip Breaker
MR1
Insert Style
SDXS
Insert Size Code
1305
Relief Angle
15.00
Included Angle Degree
90
Maximum Depth of Cut (mm)
11.40
Manufacturer Grade
IN4030
Inscribed Circle Range (Decimal Inch)
0.5100 to 0.6000
Single or Double Sided Insert
Single
Cutter Series Compatibility
15M1P
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.2000 to 0.2200
Inscribed Circle (mm)
13.00
Iso Code
SDXS1305MPR-MR1 J IN4030
Product Overview
Milling Insert: IN4030, Carbide TiAlN, AlCrO Coated, 0.2" Thick, 13 mm Wide
