Turning Insert: CNMG432ML TT9225, Solid Carbide - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ingersoll Cutting Tools 5520806-XCP10 Turning Insert: CNMG432ML TT9225, Solid Carbide - pack of 10

Item #: 5520806-XCP10 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
In Stock

$227.85

/package
SAVE UP TO 22.78
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 13 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Primary Workpiece Material Code

M

Insert Shape

Diamond

Series

CNMG

ANSI Code

CNMG432MLTT9225

Number of Cutting Edges

4

Included Angle

80.0

Insert Size Code

432

Wiper Edge

No

Tolerance Code

M

Chip Breaker

ML

Insert Thickness (Inch)

3/16

Corner Radius (Decimal Inch)

0.0310

Insert Shape Code

C

Primary Workpiece Material

Stainless Steel

Coating Process

CVD

Inscribed Circle (Decimal Inch)

0.5000

Standards

ISO

Inscribed Circle (Inch)

1/2

Manufacturer Grade

TT9225

Insert Hand

Neutral

Insert Style

CNMG

Coating/Finish

TiCN

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Rake

Negative

Clearance Code

N

Relief Angle

0

Width (Decimal Inch - 4 Decimals)

1.0000

Iso Code

CNMG120408ML TT9225

Maximum Depth of Cut (Decimal Inch)

0.1380

Vendor Drop Ship

N

Insert Material

Solid Carbide

Width (Inch)

1

Product Overview

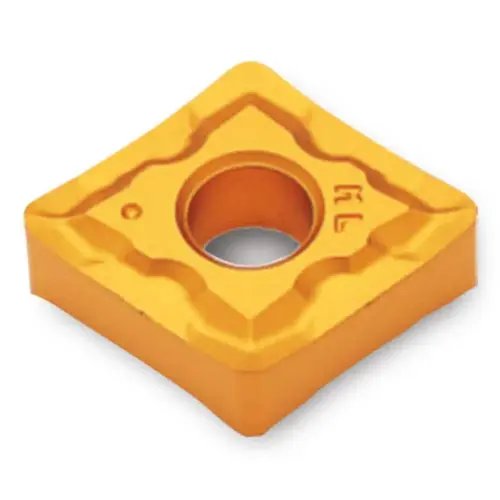

Turning Insert: CNMG432ML TT9225, Solid Carbide TiCN, Al2O3 & TiCN Coated, Neutral, 0.508" Long, 1/2" Inscribed Circle, 0.031" Corner Radius, 80 degree Diamond, Series CNMG
