Turning Insert: CNMG432ET TT5080, Solid Carbide AlTiN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

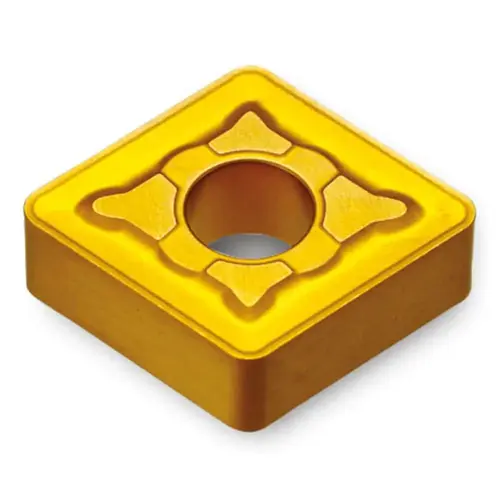

Ingersoll Cutting Tools 5523129 Turning Insert: CNMG432ET TT5080, Solid Carbide AlTiN

Item #: 5523129 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$23.31

/each
SAVE UP TO 2.33
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 401 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

ANSI Code

CNMG432ETTT5080

Number of Cutting Edges

4

Standards

ISO

Included Angle

80.0

Insert Material

Solid Carbide

Series

CNMG

Coating Process

PVD

Coating/Finish

AlTiN

Corner Radius (Decimal Inch)

0.0312

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

1.0000

Width (Inch)

1

Insert Holding Method

Clamp

Insert Length (Decimal Inch)

0.5080

Insert Thickness (Inch)

3/16

Maximum Depth of Cut (Decimal Inch)

0.2170

Rake

Negative

Insert Hand

Neutral

Wiper Edge

No

Inscribed Circle (Decimal Inch)

0.5000

Corner Radius (Inch)

1/32

Insert Shape

Diamond

Clearance Code

N

Insert Shape Code

C

Chip Breaker

ET

Insert Style

CNMG

Insert Size Code

432

Tolerance Code

M

Relief Angle

0

Inscribed Circle (Inch)

1/2

Manufacturer Grade

TT5080

Iso Code

CNMG120408ET TT5080

Product Overview
Turning Insert: CNMG432ET TT5080, Solid Carbide AlTiN & TiN Coated, Neutral, 0.508" Long, 1/2" Inscribed Circle, 1/32" Corner Radius, 80 degree Diamond, Series CNMG
