Milling Insert: IN2505, Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

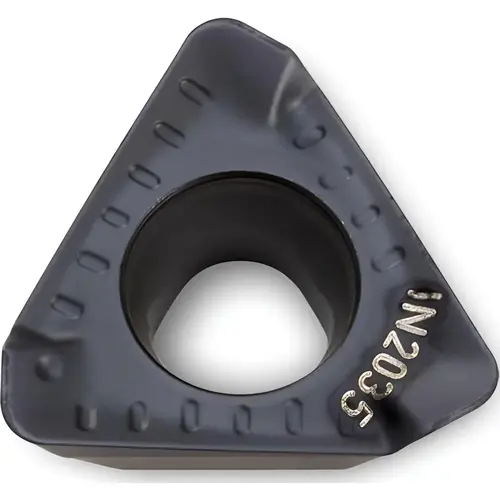

Ingersoll Cutting Tools 5615061 Milling Insert: IN2505, Carbide TiAlN

Item #: 5615061 by Ingersoll Cutting Tools

Brand: Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
In Stock

$26.88

/each
SAVE UP TO 2.69
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 50 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Cutting Edge Style

Corner Rounded

Material Application

Steel

ANSI Code

THLS060408FR IN2505

Number of Cutting Edges

3

Standards

ANSI

Insert Material

Solid Carbide

Series

THLS

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0310

Manufacturers Catalog Number

5615061

Material Grade

Micrograin

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.1570

Thickness (Inch)

5/32

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.2720

Coating Classification

PVD

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.2700

Multi-use Tool

No

Rake

Positive

Length of Cut (mm)

6.8600

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.2720

Corner Radius (Inch)

1/32

Insert Shape

Triangle

Chip Breaker

HR

Insert Style

THLS

Insert Size Code

060408

Included Angle Degree

60

Manufacturer Grade

IN2505

Inscribed Circle Range (Decimal Inch)

0.2000 to 0.3000

Single or Double Sided Insert

Single

Cutter Series Compatibility

1K_1D

Thickness Range (Decimal Inch)

0.1500 to 0.1750

Iso Code

THLS060408FR IN2505

Product Overview
Milling Insert: IN2505, Carbide TiAlN, TiN Coated, 5/32" Thick
