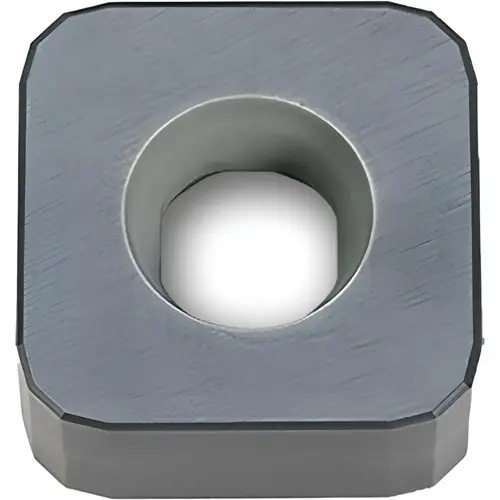

Milling Insert: SNGQ1205ENN IN71N IN71N, Silicon Nitride - pack of 10

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ingersoll Cutting Tools 5702957-XCP10 Milling Insert: SNGQ1205ENN IN71N IN71N, Silicon Nitride - pack of 10

Item #: 5702957-XCP10 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$576.02

/package
SAVE UP TO 57.60
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Material Application

Cast Iron

ANSI Code

SNGQ1205ENN IN71N

Number of Cutting Edges

8

Standards

ANSI

Insert Material

Silicon Nitride

Series

SNGQ

Coating Process

Uncoated

Coating/Finish

Bright/Uncoated

Length (Decimal Inch - 4 Decimals)

0.5000

Length (Inch)

1/2

Manufacturers Catalog Number

5702957

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.2510

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.5000

Width (Inch)

1/2

Coating Classification

Uncoated

Insert Holding Method

Screw

Maximum Depth of Cut (Decimal Inch)

0.4200

Multi-use Tool

No

Rake

Negative

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5000

Insert Shape

Square

Rake Angle

0

Chip Breaker

None

Insert Style

SNGQ

Insert Size Code

1205

Relief Angle

0.00

Included Angle Degree

90

Inscribed Circle (Inch)

1/2

Manufacturer Grade

IN71N

Inscribed Circle Range (Decimal Inch)

0.5000 to 0.5100

Single or Double Sided Insert

Double

Cutter Series Compatibility

1DD1H

Length Range (Decimal Inch)

0.5000 to 0.6000

Thickness Range (Decimal Inch)

0.2500 to 0.3500

Iso Code

SNGQ1205ENN IN71N

Product Overview
Milling Insert: SNGQ1205ENN IN71N IN71N, Silicon Nitride Bright/Uncoated Coated, 0.2510 " Thick, 0.5000" Wide
