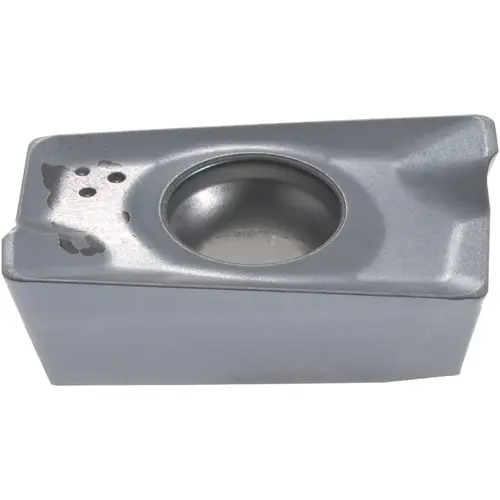

Milling Insert: APKT160408R, IN2005, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ingersoll Cutting Tools 5803832 Milling Insert: APKT160408R, IN2005, Solid Carbide TiAlN

Item #: 5803832 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary
In Stock

$35.55

/each
SAVE UP TO 3.55
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 776 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Sharp

Material Application

Cast Iron

ANSI Code

APXH53R01 IN2005

Number of Cutting Edges

2

Standards

ANSI

Insert Material

Solid Carbide

Series

APXH

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0310

Length (Decimal Inch - 4 Decimals)

0.6360

Manufacturers Catalog Number

5803832

Material Grade

Micrograin

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.2070

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.3750

Width (Inch)

3/8

Coating Classification

PVD

Insert Holding Method

Screw

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Right Hand

Inscribed Circle (Decimal Inch)

0.3750

Corner Radius (Inch)

1/32

Insert Shape

Parallelogram

Chip Breaker

None

Insert Style

APXH

Insert Size Code

53

Relief Angle

11.00

Included Angle Degree

85

Inscribed Circle (Inch)

3/8

Cutting Edge Effective Length (Decimal Inch)

0.6000

Manufacturer Grade

IN2005

Inscribed Circle Range (Decimal Inch)

0.3500 to 0.4000

Single or Double Sided Insert

Single

Cutter Series Compatibility

12J1B

Length Range (Decimal Inch)

0.6000 to 0.6500

Thickness Range (Decimal Inch)

0.2000 to 0.2200

Iso Code

APKT160408R

Product Overview
Milling Insert: APKT160408R, IN2005, Solid Carbide Coated, 0.207" Thick, 0.372" Wide
