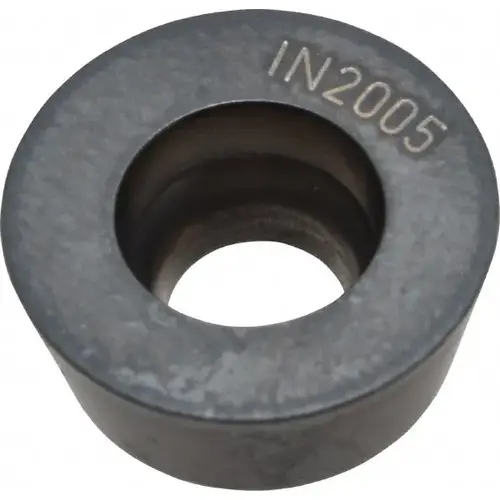

Milling Insert: RHKW1204M0TN IN2005, IN2005, Solid Carbide TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Ingersoll Cutting Tools 5805732 Milling Insert: RHKW1204M0TN IN2005, IN2005, Solid Carbide TiAlN

Item #: 5805732 by Ingersoll Cutting Tools

See reviewsSee reviews
See reviews summary

$31.76

/each
SAVE UP TO 3.18
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Cutting Edge Style

Corner Rounded

Material Application

Cast Iron

ANSI Code

RHMB33-100 J IN2005

Number of Cutting Edges

4

Standards

ANSI

Insert Material

Solid Carbide

Series

RHMB

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.2362

Length (Decimal Inch - 4 Decimals)

0.4724

Manufacturers Catalog Number

5805732

Material Grade

Micrograin

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Thickness (Decimal Inch - 4 Decimals)

0.1870

UNSPSC Code

23291601

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.4724

Coating Classification

PVD

Insert Holding Method

Screw

Multi-use Tool

Yes

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.4724

Insert Shape

Round

Chip Breaker

Flat Top

Insert Style

RHMB

Insert Size Code

33

Included Angle Degree

360

Manufacturer Grade

IN2005

Inscribed Circle Range (Decimal Inch)

0.4000 to 0.5000

Single or Double Sided Insert

Single

Cutter Series Compatibility

15B1

Length Range (Decimal Inch)

0.4500 to 0.5000

Thickness Range (Decimal Inch)

0.1850 to 0.2000

Inscribed Circle (mm)

12.00

Corner Radius (mm)

6.00

Iso Code

RHKW1204M0TN IN2005

Product Overview
Milling Insert: RHKW1204M0TN IN2005, IN2005, Solid Carbide Coated, 0.187" Thick
